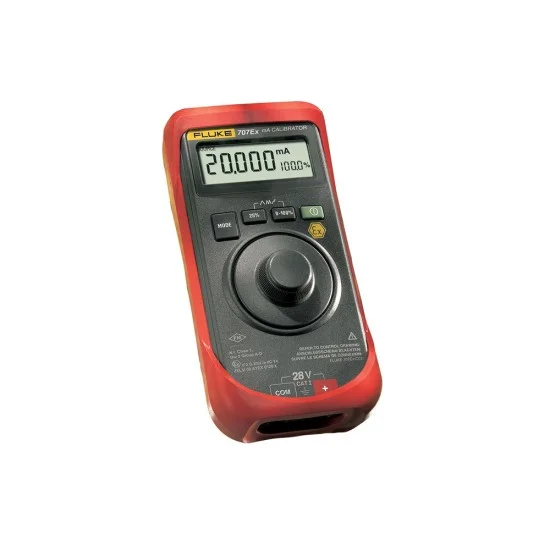

Fluke 707Ex Intrinsically Safe mA Loop Calibrator

The latest Fluke 707Ex Intrinsically Safe mA Loop Calibrator price in Pakistan is Rs. 315,000/- updated on June 20, 2026.

OVERVIEW:

• The Fluke 707Ex is an intrinsically safe loop calibrator for use in potentially explosive environments. The Fluke 707Ex is certified in accordance with the ATEX directive in Zones 1 and 2. The Fluke 707Ex is certified in accordance with the ATEX directive (Ex II 2 G Ex ia IIC T4) in Zones 1 and 2. It is also certified to operate in accordance with Factory Mutual N.I. Class 1, Division 2 areas Group A-D.
• Beyond that, it combines the best features of a push-button and knob-base loop calibrator, for extremely fast and easy calibration. The large display and simple quick-click rotary button lets you make quick selections and adjustments with one hand. Plus, features such as mA sourcing, simulation and measurement; simultaneous display of mA and % of span, and selectable step or ramp outputs, helps you work more efficiently and accurately. And you can quickly change the 9V battery without breaking the calibration seal.

Features:

• High performance intrinsically safe loop calibrator for use in potentially explosive environments
• Is certified in accordance with ATEX directive (Ex II 2 G Ex ia IIC T4) in Zones 1 and 2 and to operate in accordance with Factory Mutual N.I. Class 1, Division 2 areas Group A-D
• Features large display and simple, quick-click interface for easy one-handed operation
• Provides simultaneous mA and % readout for quick, easy interpretation of readings.
• Delivers superior mA accuracy of 0.015%
• Provides 1 µA resolution for mA source, simulate, and measure
• Includes HART® compatible resistance connected in series with the loop supply for compatibility with HART communicators
• Features push-button 25% steps for fast, easy linearity checks
• Includes 0-100% “span check” for fast confirmation of zero and span.
• Provides selectable slow ramp, fast ramp, and step ramp to provide smooth outputs for valve slewing and loop functional tests.
• Includes a 24-volt internal loop supply, so you can power and read a transmitter at the same time without a DMM.
• Measures V DC to 28 V
• Runs on a single 9 V battery that is easily changed without breaking the calibration seal
• Offers 0 – 20 mA or 4 – 20 mA default start up modes
• Features an innovative output adjustment dial

Documents:

Fluke 707Ex Intrinsically Safe mA Loop Calibrator Data Sheet.pdf
