The latest Goodwe BAT 14.3kWh IP20 Lithium Battery price in Pakistan is Rs. 680,000/- updated on October 19, 2026.

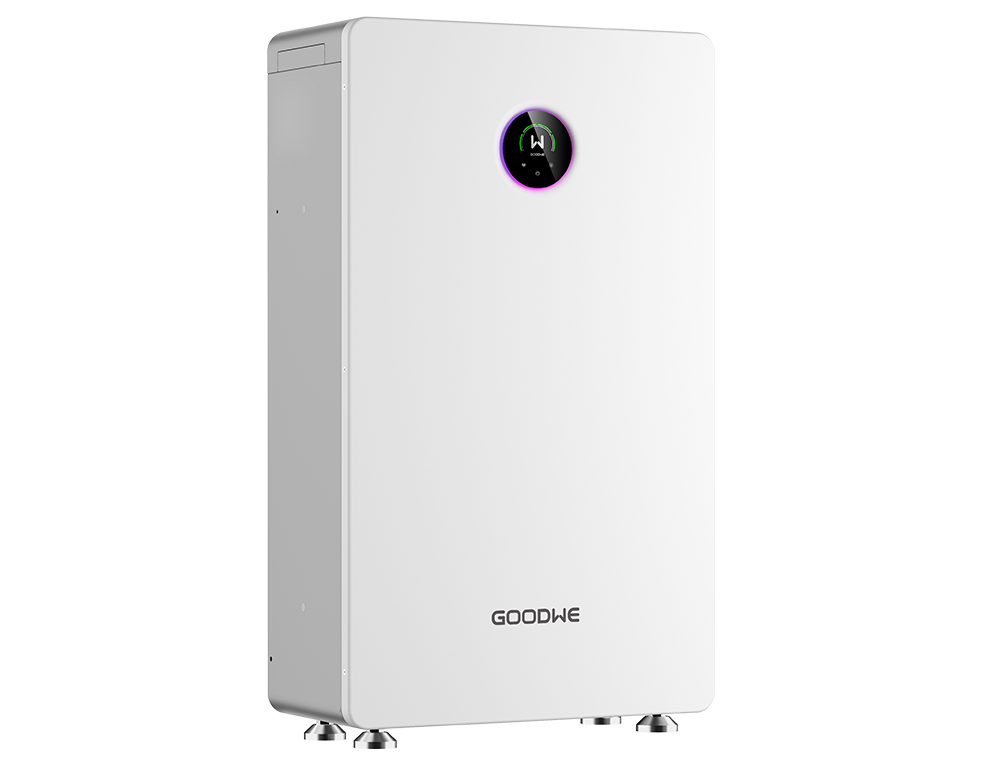

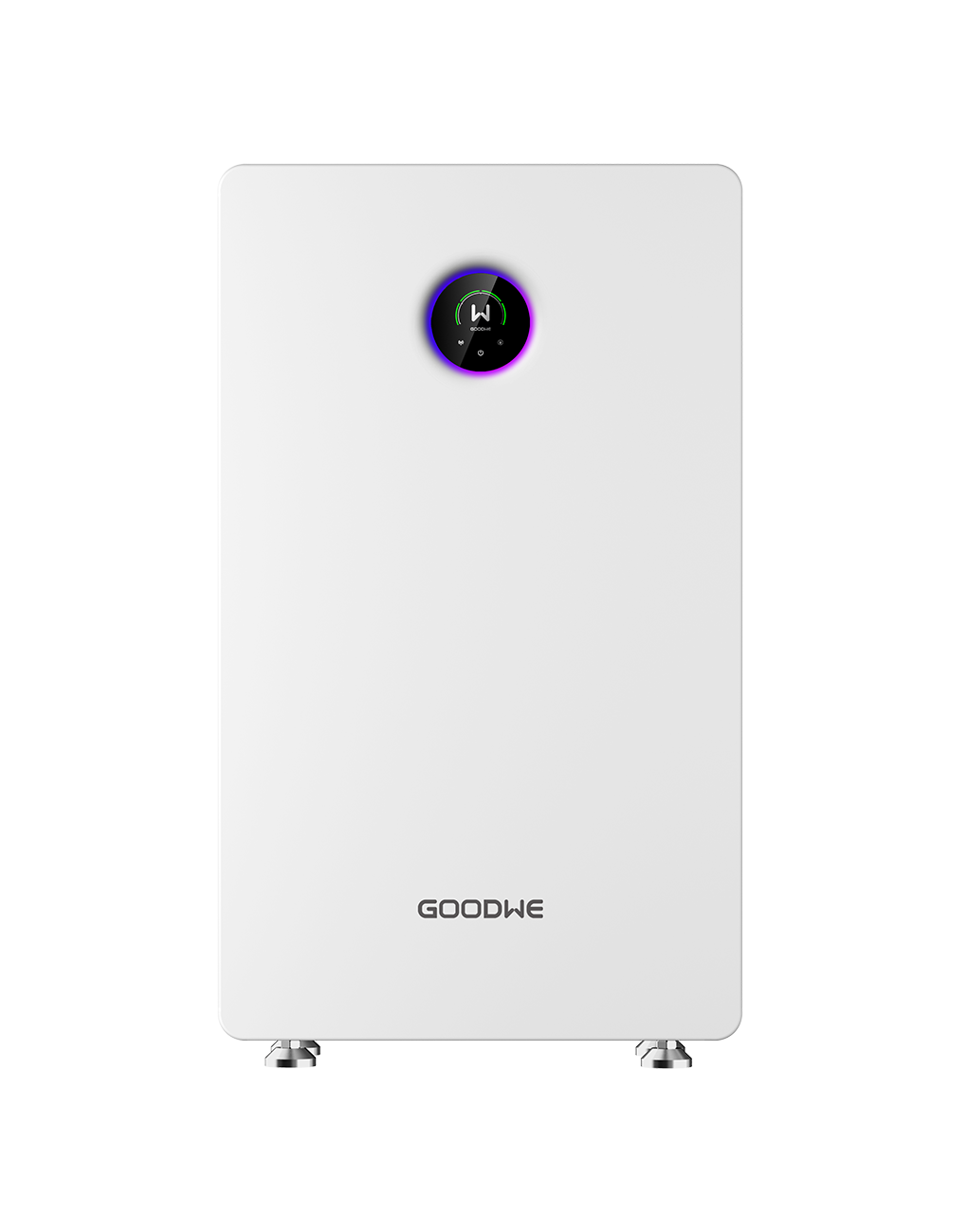

The GoodWe Lynx A G3 14.3kWh Battery is a lithium battery for solar storage and backup power.
The Lynx A G3 Series 14.3kWh battery is a high-capacity, low-voltage energy storage solution designed specifically for residential applications. It also enables homeowners to store excess solar energy for use during peak demand hours or power outages, enhancing energy independence and self-consumption. Also compatible with GoodWe low-voltage inverters, the Lynx A G3 Series ensures seamless integration and optimized system performance, providing a reliable and efficient energy storage experience for modern homes.
High Power Efficiency
The Lynx A G3 14kWh battery delivers high power efficiency with support for continuous 0.8C charging and 0.94C discharging, enabling fast and reliable energy flow to meet demanding usage scenarios. It also supports 12kW charging and 13.2kW discharging for faster load response, and its ability to connect in parallel allows for easy system expansion, ensuring both performance and flexibility as energy needs grow.
Sustained High Performance
The Lynx A G3 14kWh battery is engineered for sustained high performance, featuring high-capacity 280Ah cells that deliver a long lifespan of up to 6,500 cycles. Also built to perform in harsh conditions, it incorporates advanced heating technology that ensures reliable operation even at temperatures as low as –20°C – making it a dependable choice for long-term energy storage in diverse environments.
Wide Compatibility
The battery is compatible with both single-phase ES Uniq and three-phase ET LV inverters, and is perfectly matched with high-power inverters – giving installers flexibility when pairing it into a wide range of residential system configurations.
Friendly & Thoughtful Design
The Lynx A G3 features a white appliance-style design that blends naturally into home environments, along with a smart LED display for real-time status monitoring. It uses reliable LFP (LiFePO4) technology with high cycle stability, and each unit incorporates a dedicated Battery Management System (BMS), supporting floor-mounted or wall-mounted installation to suit different residential setups.
Datasheet:
User Manual:
Battery Compatibility List:
In addition, our team can help you choose the right model before you order.
| Technical Data (GW14.3-BAT-LV-G10) | |
| Rated Energy (kWh) | 14.3 |
|---|---|
| Usable Energy (kWh) | ≥13.8 |
| Battery Type | LFP (LiFePO4) |
| Nominal Voltage (V) | 51.2 |
| Max. Continuous Charging Current (A) | 224 |
| Max. Continuous Discharging Current (A) | 260 |
| Max. Input Power (System) (kW) | 12 |
| Max. Output Power (System) (kW) | 12 (13.2 @ 10min) |
| Peak Output Power (System) (kW) | 20 @ 15s |
| Charging Temperature Range (°C) | 0 ~ +55 |
| Discharging Temperature Range (°C) | -20 ~ +55 |
| Relative Humidity | 5 ~ 85% |
| Max. Operating Altitude (m) | 4000 |
| Communication | CAN, RS485 |
| Weight (kg) | 125 |
| Dimensions (W × H × D mm) | 530 × 885 × 246 (Without the base) / 530 × 918.6 × 246 (With base included) |
| Optional Function Configuration | Aerosol |
| Ingress Protection | IP20 |
| Ambient Temperature (°C) | 0 ~ +45 (Standard configuration) / +10 ~ +35 (Recommended) / -20 ~ +45 (Optional) |
| Max. Storage Time | 12 months (-20°C ~ +35°C) / 6 months (+35°C ~ +45°C) |
| Mounting Method | Floor-Mounted, Wall-Mounted |
| Standard and Certification | |
| Safety | IEC 62619, IEC 63056, IEC 60730-1 |
| EMC | EN IEC61000-6-1, EN IEC61000-6-2, EN IEC61000-6-3, EN IEC61000-6-4 |
| Transportation | UN38.3, ADR, MSDS |
| Notes & Conditions (from official datasheet) | |
| *1: Test conditions, 100% DOD (cell 2.85~3.6V voltage range), 0.2P charge & discharge at 25 ± 2°C for battery system at the beginning of life. Usable energy is defined by its initial design value. Actual available energy may vary depending on charge/discharge rate, environmental conditions (e.g. temperature), transport and storage factors. | |
| *2: Max. Input Power / Max. Output Power / Peak Output Power derating will occur related to Temperature and SOC. | |
| GoodWe-Single page-20260112-EN-V2.1. Information may be subject to change without notice during product improving. | |
