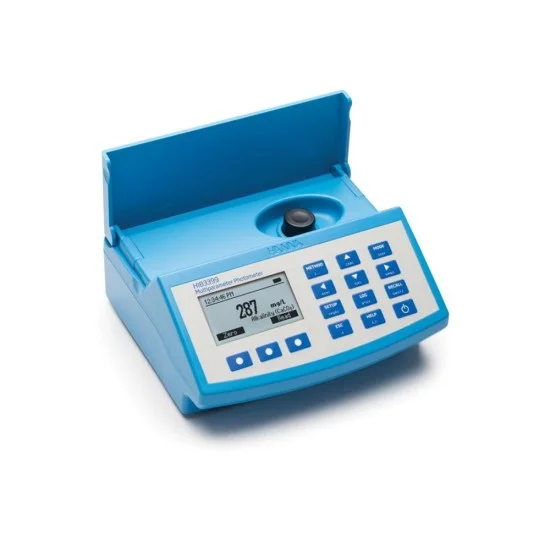

HANNA HI-83399 Water and Wastewater Multi-Parameter with COD Photometer
₨250,000.00
The latest HANNA HI-83399 Water and Wastewater Multi-Parameter with COD Photometer price in Pakistan is Rs. 250,000/- updated on June 20, 2026.
OVERVIEW:
- HI83399 is a compact, multiparameter photometer for measuring key water and wastewater quality parameters. The meter is one of the most advanced photometers available with an innovative optical design that utilizes a reference detector and focusing lens to eliminate errors from changes in the light source and imperfections in the glass cuvette.
- The HI 83399 multiparameter photometer offers a compact solution for measuring key water and wastewater quality parameters. It is one of the most advanced photometers available, offering an innovative optical design that uses a reference detector and focusing lens to eliminate errors caused by changes in the light source and imperfections in the glass cuvette.
- 40 key water and wastewater quality parameters with 73 different methods covering multiple ranges are programmed into the meter. Wastewater treatment digestion parameters include COD, Total Nitrogen, and Total Phosphorous which are important for monitoring nutrient removal. The HI83399 also offers an absorbance measurement mode for performance verification and for users that would like to develop their own concentration versus absorbance curves.
- HI83399 benchtop photometer measures 40 different key water and wastewater quality parameters using 73 different methods that allow for multiple ranges and variations in chemistry for specific applications. The Chemical Oxygen Demand (COD) parameter is included for industrial and municipal wastewater treatment. The Phosphorous and Nitrogen parameters included are beneficial to municipal wastewater treatment customers that need to monitor their biological and chemical nutrient removal process. This photometer features an innovative optical system that uses LEDs, narrow band interference filters, a focusing lens and a silicon photodetector for absorbance measurement, and a reference detector to maintain a consistent light source that ensures accurate and repeatable photometric readings every time.
- A digital pH electrode input is provided allowing the user to measure pH by a traditional glass electrode. The digital pH electrode has a built-in microchip within the probe that stores all of the calibration information. Having the calibration information stored in the probe allows for hot-swapping of pH electrodes without having to recalibrate. All pH measurements are automatically compensated for temperature variations with a built-in thermistor located in the tip of the sensing bulb for fast and accurate temperature measurement.
- Two USB ports are provided for transferring data to a flash drive or computer and to use as a power source for the meter. For added convenience and portability the meter can also operate on an internal 3.7 VDC Lithium-polymer rechargeable battery.
- The HI83399 offers an absorbance measuring mode that allows for CAL Check standards to validate the system’s performance. The absorbance mode allows the user to select one of the 5 wavelengths of light (420 nm, 466 nm, 525 nm, 575 nm, and 610 nm) to measure and plot their own concentration versus absorbance mode. This is useful for users with their own chemical method and for education to teach the concept of absorbance by using the Beer-Lambert Law.
Features:
- Backlit 128 x 64 Pixel Graphic LCD Display
- Built-in Reaction Timer for Photometric Measurements
- Absorbance mode
- Appropriate unit of measure along with chemical form is displayed along with reading
- Automatically convert readings to other chemical forms with the touch of a button
- Data Logging
Features at-a-glance:
- COD and 40 key water and wastewater quality parameters with 73 different methods
-
Digital pH Electrode Input: Measure pH and temperature with a single probe
-
Data Logging: Up to 1000 photometric and pH readings
-
Connectivity : USB
- Battery Status Indicator
-
Error messeges : Self Daignostic
- HANNA HI-83399 Water and Wastewater Multi-Parameter with COD Photometer
Display Specification
| Display | 128 x 64 pixel LCD with Backlight |
HARDWARE FEATURES
| Light Source | LED |
General Specification
| Absorbance Range | 0.000 to 4.000 Abs |
| Alkalinity Range | Freshwater 0 to 500 mg/L (as CaCO3) Seawater 0 to 300 mg/L (as CaCO3) |
| Aluminum Range | 0.00 to 1.00 mg/L (as Al3+) |
| Ammonia Range | Low Range 0.00 to 3.00 mg/L,Medium Range 0.00 to 10.00 mg/L,High Range 0.0 to 100.0 mg/L |
| Anionic Surfactants Range | 0.00 to 3.50 mg/L (as SDBS) |
| Bandpass Filter Bandwidth | 8 nm |
| Bandpass Filter Wavelength Accuracy | 1 nm |
| Bromine Range | 0.00 to 8.00 mg/L (as Br2) |
| Calcium Hardness Range | 0.00 to 2.70 mg/L (as CaCO3) |
| Calcium Range | Freshwater 0 to 400 mg/L (as Ca2+) Seawater 200 to 600 mg/L (as Ca2+) |
| Chemical Oxygen Demand Range | Low Range 0 to 150 mg/L Medium Range 0 to 1500 mg/L High Range0 to 15000 mg/L |
| Chloride Range | 0.0 to 20.0 mg/L (as Cl) |
| Chlorine Dioxide Range | 0.00 to 2.00 mg/L |
| Chromium Hexavalent Range | Low Range 0 to 300 ug/L High Range 0 to 1000 ug/L |
| Copper Range | Low Range 0.000 to 1.500 mg/L (as Cu2+) High range 0.00 to 5.00 mg/L (as Cu2+) |
| Cuvette Type | round,24.6 mm |
| Cyanuric Acid Range | 0 to 80 mg/L (as CYA) |
| Dissolved Oxygen Range | 0.0 to 10.0 mg/L (as O2) |
| Environment | 0 to 50.0 Deg C (32 to 122.0 Deg F); 0 to 95% RH,Non-condensing |
| Fluoride Range | Low Range 0.00 to 2.00 mg/L (as F-) High range 0.0 to 20.0 mg/L (as F-) |
| Free Chlorine Range | 0.00 to 5.00 mg/L (as Cl2) Ultra Low Range 0.000 to 0.500 mg/L (as Cl2) |
| GLP | Calibration data for connected pH electrode |
| Hydrazine Range | 0 to 400 ug/L (as N2H4) |
| Input Channels | 1 Ph Electrode Input And 5 Photometer Wavelengths |
| Iodine Range | 0.0 to 12.5 mg/L (as I2) |
| Iron Range | Low Range 0.000 to 1.600 mg/L (as Fe) High Range 0.00 to 5.00 mg/L (as Fe) |
| Logging Memory | 1000 readings |
| Logging Type | log on-demand with a user name and sample ID optional input |
| Magnesium Hardness Range | 0.00 to 2.00 mg/L (as CaCO3) |
| Magnesium Range | 0 to 150 mg/L (as Mg2+) |
| Manganese Range | Low Range 0 to 300 ug/L (as Mn) High Range 0.0 to 20.0 (as Mn) |
| Nickel Range | Low Range 0.000 to 1.000 mg/L (as Ni) High Range 0.00 to 7.00 g/L (as Ni) |
| Nitrate Range | 0.0 to 30.0 mg/L (as NO3– N) 16 mm vial 0.0 to 30.0 mg/L (as NO3– N) |
| Nitrite Range | Freshwater Low Range 0 to 600 ug/L (as NO2–N) High Range 0 to 150 mg/L (as NO2-) Seawater Ultra |
| Nitrogen Total Range | Low Range 0.0 to 25.0 mg/L (as NO3–N) High Range 0 to 150 mg/L (as N) |
| Number of Methods | 128 |
| Oxygen Scavenger Range | 0 to 1000 ug/L (as DEHA) 0.00 to 1.50 mg/L (as Carbohydrazide) 0.00 to 2.50 mg/L (as Hydroquinone) |
| Ozone Range | 0.00 to 2.00 mg/L (as O3) |
| pH Range | 6.5 to 8.5 pH |
| Phosphate Range | Freshwater Low Range 0.00 to 2.50 mg/L (as PO43-) High range 0.0 to 30.0 mg/L(as PO43-) Seawater U |
| Phosphoros Reactive Range | Low Range 0.00 to 1.60 mg/L (as P) High Range 0.0 to 32.6 mg/L (as P) |
| Phosphorous Acid Hydrolyzable Range | 0.00 to 1.60 mg/L (as P) |
| Phosphorous Total Range | Low Range 0.00 to 1.15 mg/L (as P) High Range 0.0 to 32.6 mg/L (as P) |
| Photometer Colorimeter Light Source | 5 LEDs with 420 nm,466 nm,525 nm,575 nm, and 610 nm narrowband interference filters |
| Photometer Light Detector | Silicon Photodetector |
| Photometer Light Source | 5 LEDs with 420nm,466nm,525nm,575nm, and 610nm narrowband interference filters |
| Potassium Range | 0.0 to 20.0 mg/L (as K) |
| Silica Range | Low Range 0.00 to 2.00 mg/L (as SiO2) High Range 0 to 200 mg/L (as SiO2) |
| Silver Range | 0.000 to 1.000 mg/L (as Ag) |
| Sulfate Range | 0 to 150 mg/L (as SO42-) |
| Total Hardness Range | Low Range 0 to 250 mg/L (as CaCO3) Medium Range 200 to 500 mg/L (as CaCO3) High Range 400 to 750 |
| Usage | Application: WATER WASTEWATER |
| Water Color Range | 0 to 500 PCU (Platinum Cobalt Units) |
| Weight | 1.0 kg (2.2 lbs.) |
| Zinc Range | 0.00 to 3.00 mg/L (as Zn) |
| Connectivity | USB |
| Dimensions | 206 x 177 x 97 mm (8.1 x 7.0 x 3.8 Inch) |
| Power Supply | 5 VDC USB 2.0 Power Adapter With USB-A To Micro-USB-B Cable (Included) |
