The latest Hyundai N300-075LF Inverter 7.5KW / 10HP price in Pakistan is Rs. 920,000/- updated on October 21, 2026.

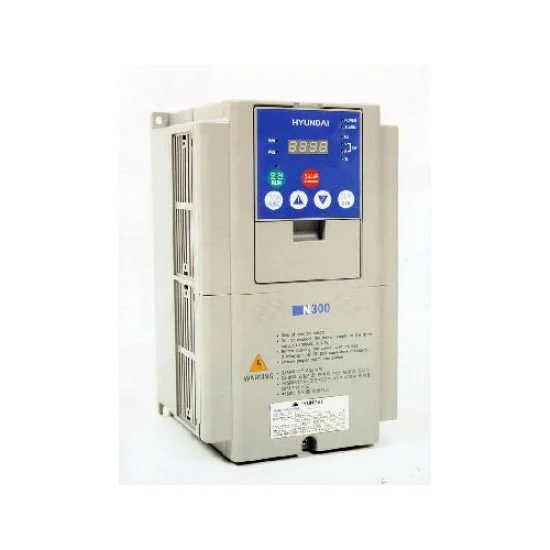

You can buy the Hyundai N300-075LF Inverter 7.5kW / 10HP online at Roshanex in Pakistan.
FEATURES:
- High starting torque 0f 200% at 0.5Hz
- High torque of 150% at approximately 0 Hz when applied to a smaller motor by one frame size
- Inverter motor is not necessary
- Using sensorless vector control
- More stable and precise operation is possible at low speed range
- Auto-tuning to perform sensorless vector control can now be easily done both on-line and off-line
- Devicenet, Profibus(option)
- The cooling fan operates while the inverter is running, and stops when the inverters stops
- Helps simplify the system and save initial cost due to unnecessity of PI controller
- Decelerates and stops the motor using regenerative energy from the motor even though the power is not supplied
- Provides stable control for carrier or trolley operation
- Programmed for user to select the functions only which he wants
Documents:
Capacitance
| Motor Capacity | 7.5 KW |
TECHNICAL SPECIFICATION
| Frequency Accuracy | Digital ±0.01% of maximum frequency, Analog ±0.2%(25℃±10℃) |
| Frequency Resolution | Digital setting ‘0.01Hz, Analog setting ‘Maximum frequency/4000(O terminal:12bit/0~+10V, 02 terminal :12bit/-10~+10V) |
| Rated Input Voltage | 11 kVA |
| Rated Output Capacity | 4.2 kVA |
| Rated Output Current | 16 A |
| Rated Output Voltage | 3-phase 380~480V(±10%) 50Hz/60Hz (According to supply voltage) |
General Specification
| Frequency | 0.1~400Hz |
