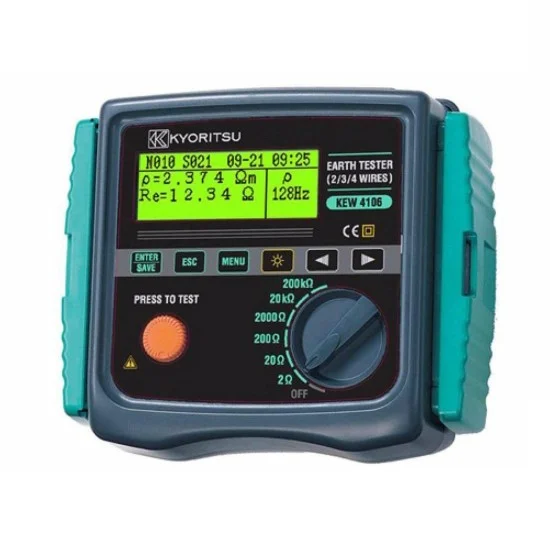

The latest KEW 4106 Earth Resistance & Resistivity Tester price in Pakistan is Rs. 260,000/- updated on June 20, 2026.
OVERVIEW:
- High test current up to 80mA yielding resolution of 0.001Ω on 2Ω range.
- Advanced Filtering method (based on FFT Fast Fourier Transform) reduces noise interference for obtaining stable measurements.
- Automatic and Manual selection of the Test Current Frequency in four bands (94/105/111/128Hz). In Automatic mode, KEW 4106 will select the most suitable Frequency.
- Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.
- Warning for excessive noise and high Auxiliary Earth Spikes resistance.
- Large Graphic Display with backlight for readings in poorly illuminated areas.
- Up to 800 measurement results can be saved in the memory and recalled on the display.
- The stored results can be transferred to a PC using the ‘KEW Report’ software and a USB adaptor (Model 8212-USB) which are included.
- Robust design with IP54 protection
Documents:
KEW 4106 Earth Resistance & Resistivity Tester Data Sheet.pdf
Summary
| Accessories | 7229A (Earth precision measurement), 7238A (Simplified measurement test leads), 8032 (Auxiliary earth spikes [2 spiks/set])Ă—2 sets (4 spikes in total), 8200-04 (Cord reel [4 pcs])Ă—1 set, 8212-USB (USB adaptor with ‘KEW Report(Software)’), 9121 (Shoulder strap), 9125 (Carrying case), R6 Ă— 8, Instruction manual, Calibration certificate |
| LCD | Dot-matrix 192Ă—64 monochrome |
| Overload protection | between E-S(P) and between E-H(C) terminals AC280V / 10 sec. |
General Specification
| Dimensions | 167(L) Ă— 185(W) Ă— 89(D) mm |
| Power source | DC12V : sizeAA manganese dry battery (R6) Ă— 8 (Auto power-off: approx. 5 minutes) |
| weight | approx. 900g (including batteries) |
