Knox, Solar, Solar On-Grid Inverter

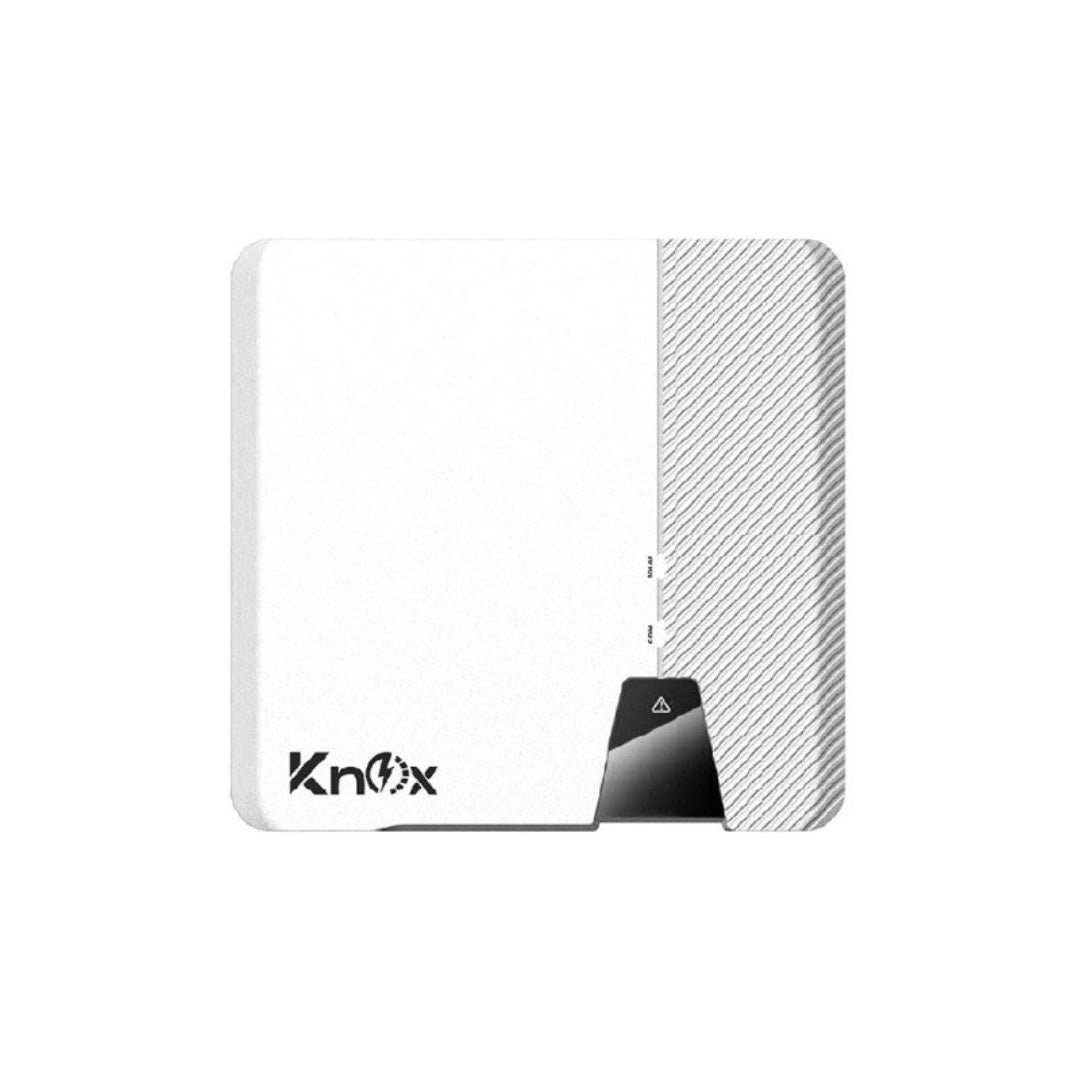

KNOX ASW 6000-T On Grid Solar Inverter (Limited Edition)
₨125,000.00
The latest KNOX ASW 6000-T On Grid Solar Inverter (Limited Edition) price in Pakistan is Rs. 125,000/- updated on August 31, 2026.
Product Details:
A benchmark three-phase on-grid inverter (OEM Solplanet ASW6000-T platform) designed for small decentralized residential, commercial and industrial systems, delivering 6000W of grid-tied output with a wide MPPT voltage range.
Features:
- Rated Power: 6,000W three-phase output (9,000Wp max PV array power).
- Wide MPPT Range: 125V to 950V MPPT voltage range, dual MPPT (2/A:1;B:1).
- High Efficiency: 98.2% max efficiency, 97.6% European efficiency.
- Easy Installation: Compact, wall-mounted, SUNCLIX connectors, quick WiFi setup.
- Weatherproof: IP65 rated for outdoor use.
Documents:
Knox ASW6000-T (Solplanet ASW-T Series) Official Data Sheet.pdf
GENERAL
| Model | ASW6000-T (OEM Solplanet ASW-T Series) |
| Ingress Protection | IP65 |
| Topology | Transformerless |
DC INPUT
| Max PV Array Power | 9,000Wp STC |
| Max Input Voltage | 1000V |
| MPP Voltage Range / Rated Input Voltage | 125V to 950V / 630V |
| Max Operating Input Current | 12A / 12A |
| MPPT Inputs | 2 (A:1; B:1) |
AC OUTPUT
| Rated Power | 6,000W |
| Max Apparent Power | 6,000VA |
| AC Voltage Range | 180V to 295V |
| Max Output Current | 9.1A |
| THD at Rated Output | <3% |
PERFORMANCE
| Max / European Efficiency | 98.2% / 97.6% |
MECHANICAL
| Operating Temperature Range | -25°C – +60°C |
| Dimensions | 424 × 375 × 172 mm |
| Weight | 13.5 kg |
| Communication | WiFi / RS485 |
