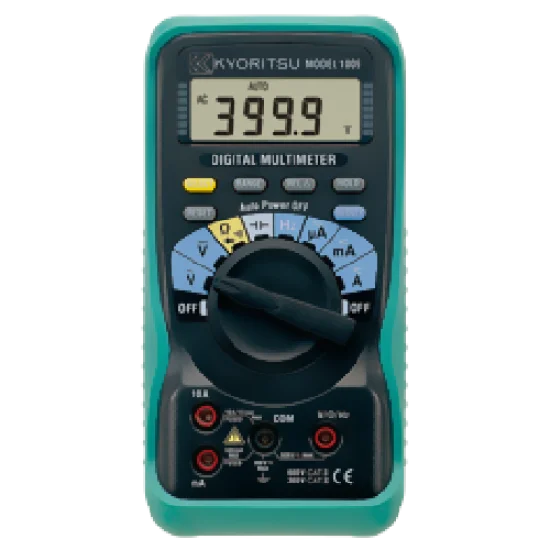

KYORITSU 1009 Digital Multimeter
₨9,500.00
The latest KYORITSU 1009 Digital Multimeter price in Pakistan is Rs. 9,500/- updated on August 30, 2026.
FEATURES:
- Display: 4000 counts.
- Auto range and manual range selector provided. with range hold
- Resistance range provides an audible continuity test.
- Automatically turns power off in about 30 minutes to conserve battery life.
- Direct current measurement up to 10A AC and DC.
- With Holster.
Documents:
Summary
| AC A | 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A) |
| Continuity buzzer | 400Ω (Buzzer sounds below 100Ω) |
| DC A | 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA)±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A) |
| DC Voltage | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V) |
| Decibel | -10 – +62dB |
| hFE | 0 – 1000 (Ω × 10) ±3% of scale length |
| Included Accessories | 7066A (Test leads) 8901 (Fuse [0.5A/250V]) × 2 R6 (AA) × 2 6F22 × 1 Instruction Manual |
| Optional Accessories | 9168 (Carrying Case) |
| AC Voltage | 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 – 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V) |
| Weight | 280g approx. |
| Power Source | R6 (AA) (1.5V) × 2 6F22 (9V) × 1 |
| Ohms | 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ) |
General Specification
| Dimensions | 150(L) × 100(W) × 47(D)mm |
