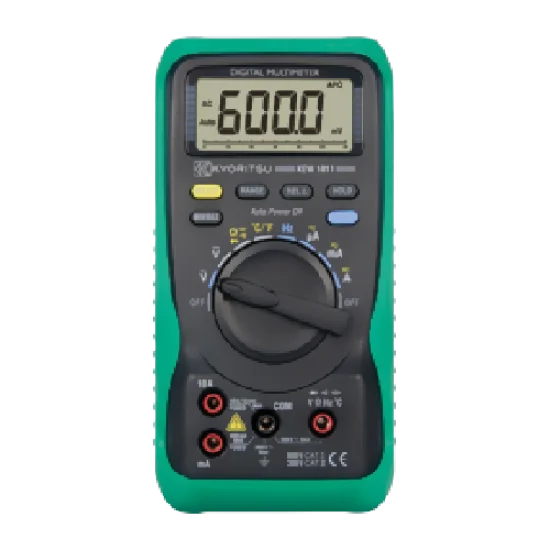

The latest KYORITSU KEW 1012 Digital Multimeters price in Pakistan is Rs. 35,000/- updated on June 20, 2026.
FEATURES:
- True RMS can measure and indicate distorted waveforms
- 6040 counts with Bar Graph display
- MIN/MAX function enables to record min & max value
- REL(relative value) function to indicate the measurement variation
Documents:
Display Specification
| Display | 6040 Counts |
Summary
| AC A | 600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A) |
| Applicable standards | Applicable standards |
| Continuity buzzer | 0 – 600Ω (Buzzer sounds below 100Ω) |
| DC A | 600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A) |
| DC Voltage | 600.0mV/6.000/60.00/600.0/600V (Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V) |
| Diode test | 2.8V Release Voltage:Approx. 0.4mA Test Current |
| Included Accessories | 7066A (Test leads) 8216 (K-type Temperature probe) 0.8A/600V (Ceramic Fuse) Ă— 1built-in 10A/600V (Ceramic Fuse) Ă— 1built-in R6 Ă— 2Instruction Manual |
| Optional Accessories | 7234 (Crocodile clip test lead) 9095 (Carrying case) |
| AC Voltage | 6.000/60.00/600.0/600V (Input Impedance: 10MΩ) ±1.0%±3dgt (6.000/60.00/600.0V)±1.5%±3dgt (600V) |
| Capacitance | 40/400nF/4/40/400/4000µF |
| Frequency | 10/100/1000Hz/10/100/1000kHz/10MHz |
| Duty Cycle | 0.1 – 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz) |
| Weight | 280g approx. |
| Power Source | R6 (1.5V) Ă— 2 (Auto-power-OFF within 15 minutes) |
| Ohms | 600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt (600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ) |
General Specification
| Dimensions | 150(L) Ă— 100(W) Ă— 47(D)mm |
There are no reviews yet.
