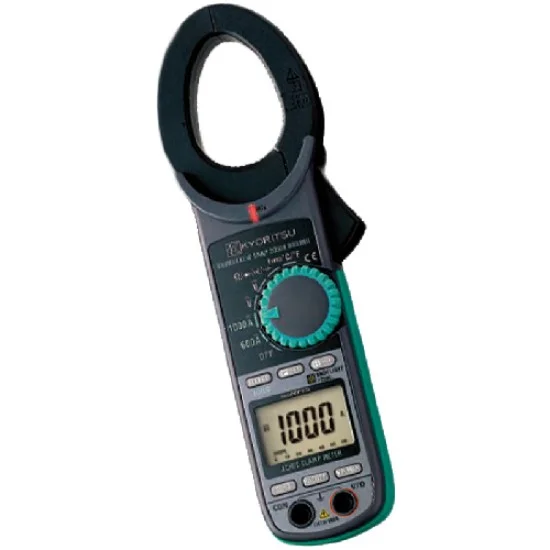

The latest KYORITSU KEW 2056R AC/DC Digital Clamp Meter price in Pakistan is Rs. 58,000/- updated on June 20, 2026.
FEATURES:
- Designed to meet international safety standard IEC 61010-1 CAT IV 600V.
- CAT IV Clamp Meters can measure the Voltage and Current in both very low and high power circuits.
- Very useful for power distribution companies, power utilities and maintenance fields.
- True RMS enables an accurate measurement.
Documents:
POWER
| AC Current | 0 – 600.0/1000A ±2.0%rdg±5dgt (50/60Hz) ±3.5%rdg±5dgt (40 – 500Hz) |
Summary
| Capacitance test | 400n/4µ/40µF(Auto Ranging) |
| Conductor size | Ø40mm |
| Continuity buzzer | Buzzer Sounds at 100Ω |
| DC Voltage | 600m/6/60/600V Auto Ranging ±1.0%rdg±3dgt |
| Included Accessories | 7066A (Test leads) 9094 (Carrying case) Instruction Manual |
| Optional Accessories | 8216 (Temperature probe) |
| Safety Standard | IEC 61010-1 CAT IV 600V, IEC 61010-031, IEC 61010-2-032, IEC 61326 |
| AC Voltage | 6/60/600V Auto Ranging ±1.5%rdg±4dgt (50/60Hz) ±3.5%rdg±5dgt (40 – 400Hz) |
| DC Current | 0 – 600.0/1000A ±1.5%rdg±5dgt |
| Frequency | 10/100/1k/10kHz (Auto Ranging) / 0.1 – 99.9% |
| Weight | 310g |
| Temperature | -50ºC – +300ºC (With the use of Temperature probe 8216) |
| Power Source | R03 (1.5V) (AAA) × 2 |
| Ohms | 600/6k/60k/600k/6M/60MΩ (Auto Ranging) ±1%rdg±5dgt (600 – 6M) / ±5%rdg±8dgt (60M) |
General Specification
| Dimensions | 254(L) × 82(W) × 36(D)mm |
