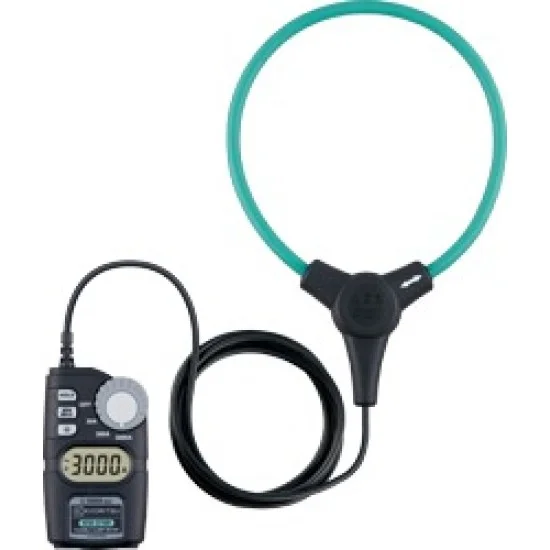

KYORITSU KEW 2210R AC Digital Clamp Meter


68,000.00

The latest KYORITSU KEW 2210R AC Digital Clamp Meter price in Pakistan is Rs. 68,000/- updated on June 22, 2026.

FEATURES:

  • Flexible and lightweight clamp sensor
  • Wide reading range up to 3000A
  • True RMS
  • MIN MAX function
  • Backlight LCD display
  • IEC 61010-1 (CAT IV 600V / CAT III 1000V)
Documents:

KYORITSU KEW 2210R AC Digital Clamp Meter Data Sheet.pdf

Summary

Applicable standardsIEC 61010-1, IEC 61010-2-032 | CAT Ⅳ 600V / CAT Ⅲ 1000V Pollution degree 2 | IEC 61326-1(EMC) , IEC 60529 IP40 , EN50581(RoHS)
Conductor sizeφ150mm max.
Crest factor(CF) : Full scale CF<1.6, half scale<3.2
Effective input crest values are √2 times the max values of each range.
Operating temperature & humidity range0 – +50℃,less than 80% RH (without condensation)
Overload protection5000A AC for 10 seconds
Storage temperature & humidity range-10 – +60℃,less than 70% RH (without condensation)

TECHNICAL SPECIFICATION

AC Range30.00/300.0/3000A
Influence of Conductor PositionAdditional ±3% (max.) depending on the distance from the center position

General Specification

Accuracy±3%rdg±5dgt[45-500Hz]
(At the center of the circle formed by the flexible sensor)
Power sourceR03 / LR03(AAA)(1.5V)×2 ※Continuous measuring time:approx.120hours
(Auto power off:approx.15 minutes)
Weight300g approx. (including batteries)
Dimensions120(L)×70(W)×26(D):Display unit
φ8.5mm approx.:Cable diameter
1.8m approx.:Cable length
