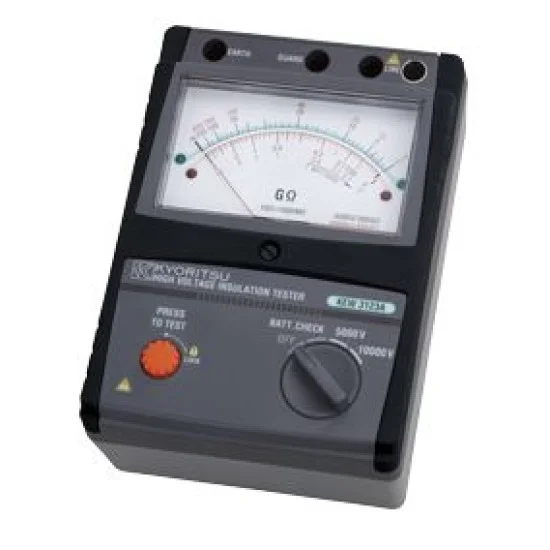

The latest KYORITSU KEW 3123A High Voltage Insulation Tester price in Pakistan is Rs. 185,000/- updated on June 21, 2026.
OVERVIEW:
- Rugged design with a hard carrying case for field use
- Detachable High Voltage Line probe
- Automatic ranges, high and low scales, indicated by different LED’s
- Drip-proof
Documents:
KYORITSU KEW 3123A High Voltage Insulation Tester Data Sheet.pdf
Summary
| DC Voltage | 5000/10000V |
| Optional Accessories | 7168A (Line probe with aligator clip) 8324 (Adaptor for recorder) 7253 (Longer Line probe with alligator clip) (15m) |
| Accuracy | ± 5% rdg |
| Measuring range | 5GΩ/200GΩ (Auto-ranging) (5000V) 10GΩ/400GΩ (Auto-ranging) (10000V) |
General Specification
| Power source | R6 (AA) (1.5V) Ă— 8 |
| weight | approx. 1kg |
| Dimensions | 200 (L) Ă— 140 (W) Ă— 80 (D) mm |
