The latest KYORITSU KEW 6300 Power Meter price in Pakistan is Rs. 495,000/- updated on October 21, 2026.

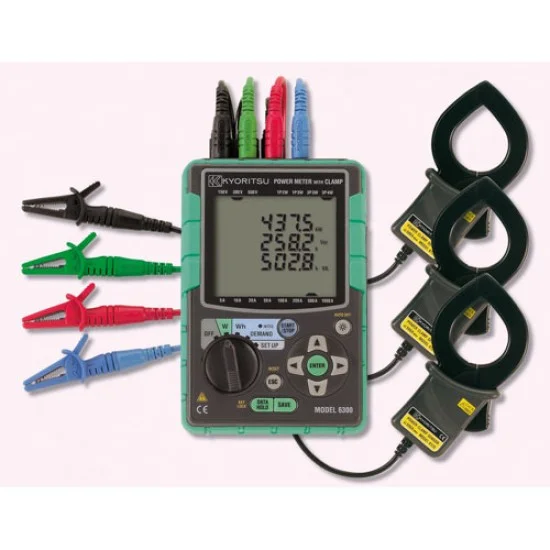

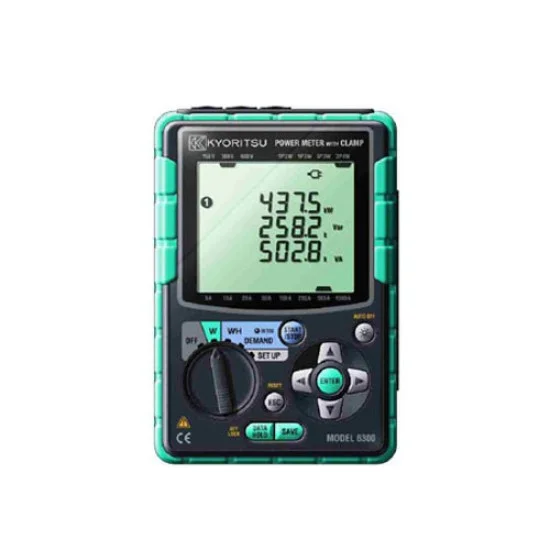

The Kyoritsu KEW 6300 Power Meter is a portable power meter that offers 12 kinds of power measurements. It suits energy audits, load studies and demand monitoring in factories and buildings.
What It Measures
The meter covers voltage (RMS), current (RMS), active power, apparent power and reactive power. It also records active energy, apparent energy and reactive energy. In addition, it measures power factor (cos θ), frequency and demand. It can even show the current flowing on the neutral line, but only on 3 phase 4 wire measurement.
You can also measure regenerative electric power, because the meter detects both consumed and regenerative power. Regenerative power is the electric power that a private generator produces and supplies to the electric power company.
Wiring Systems
The meter supports 4 types of wiring system:
- 1 phase 2 wire, with 1ch, 2ch or 3ch
- 1 phase 3 wire
- 3 phase 3 wire
- 3 phase 4 wire
Key Features of the Kyoritsu KEW 6300
- Large screen that shows 3 different data values at the same time
- Recording interval that you can set between 1 second and 1 hour
- Interval steps of 1, 2, 5, 10, 15, 20 or 30 seconds
- Longer steps of 1, 2, 5, 10, 15, 20 or 30 minutes, as well as 1 hour
- Demand measurement, with a buzzer and blinking backlight that warn you before you exceed the preset demand target
- Dual power supply from the AC line or 6 alkaline AA batteries (LR6)
- Continuous measurement for 7 hours when you run it on batteries
- Interface software included, so you can download data to a PC via USB
- Direct communication with a PC through the USB connection
- CompactFlash (CF) card slot that also accepts external memory up to 8GB
- Backlight function for work in dim areas
- Designed to the IEC 61010-1 CAT III 600V safety standard
Using the Meter
This meter suits electrical engineers, maintenance teams and energy auditors. For example, it helps you find peak demand, check power factor and track energy use over time. Before a survey, choose the wiring setting that matches the circuit. Then set a recording interval that suits the length of the study. When the study ends, copy the data to your PC for analysis.
Documents
KYORITSU KEW 6300 Power Meter Data Sheet.pdf
In addition, our team can help you choose the right model before you order.
Summary
| Current range | 8128 ( 50A type ) : 5 / 10 / 20 / 50A, 8127 ( 100A type ) : 10 / 20 / 50 / 100A, 8126 ( 200A type ) : 20 / 50 / 100 / 200A, 8125 ( 500A type ) : 50 / 100 / 200 / 500A, 8124 ( 1000A type ) : 50 /100 / 200 / 500 / 1000A, 8130 ( 1000A type ) : 50 /100 / 200 / 500 / 1000A, 8129 ( 3000A type ) : 1000 / 3000A, (CF:3.0 or less. 90% or less of each range). |
| Measurement | Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Apparent energy, *Reactive energy, Power factor (cos θ), Neutral current, Frequency meter. |
| Operating temperature & humidity range | 0 – +50ºC, less than 85% RH (without condensation) |
| Overload protection | Voltage : 720V AC rms, Current : 600A AC rms (with Clamp sensor MODEL 8125) |
| Safety Standard | IEC 61010-1 CAT III 600V |
| Storage temperature & humidity range | -20 – +60ºC, less than 85% RH (without condensation) |
| Voltage accuracy | Range : ±0.3%rdg±0.2%f.s. (sine wave, 45 – 65Hz) |
| Voltage range | 150 / 300 / 600V (CF: 2.5 or less) |
| Wiring connections | 1P 2W, 3P 4W, 3P 3W, 1P 3W |
| Power Factor | Active power : ±1.0% rdg cos θ=±0.5 (PF=1) |
| Weight | Approx. 800g (including batteries) |
HARDWARE FEATURES
| Power Consumption | 10VA (MAX) |
| Power Supply | AC Line : 100 – 240V±10% (50/60Hz), DC Battery 9V : LR6×6(Battery life approx. 7h) |
General Specification
| Dimension | 175(L)×120(W)×65(D) mm |
WIRELESS FEATURES
| Frequency Range | 40 – 70Hz |
