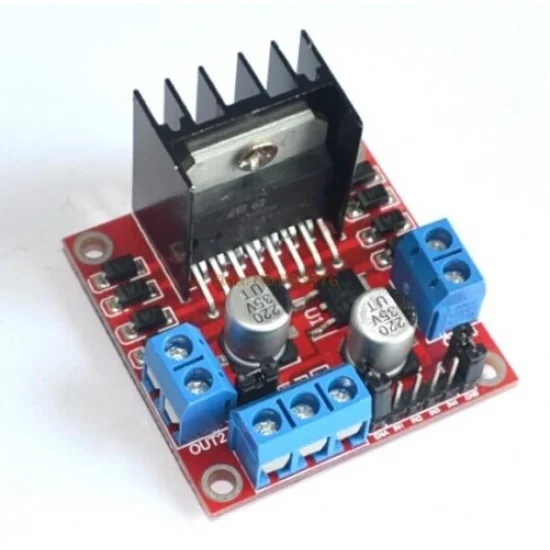

The latest L298N Motor Driver Shield price in Pakistan is Rs. 420/- updated on September 8, 2026.
OVERVIEW:
- This dual bidirectional motor driver, is based on the very popular L298 Dual H-Bridge Motor Driver Integrated Circuit. The circuit will allow you to easily and independently control two motors of up to 2A each in both directions. It is ideal for robotic applications and well suited for connection to a microcontroller requiring just a couple of control lines per motor. It can also be interfaced with simple manual switches, TTL logic gates, relays, etc. This board equipped with a power LED indicators, onboard +5V regulator and protection diodes.
General Specification
| Power Consumption | 20W (when the temperature T = 75 ℃) |
| Storage temperature | -25 ℃ ~ +130 ℃ |
| Input Voltage | 3.2V~40Vdc |
| Power Supply | DC 5 V – 35 V |
| Dimension | 3.4cm x 4.3cm x 2.7cm |
