The latest Lutron CB-933 Cable Tester price in Pakistan is Rs. 125,000/- updated on September 10, 2026.
OVERVIEW:

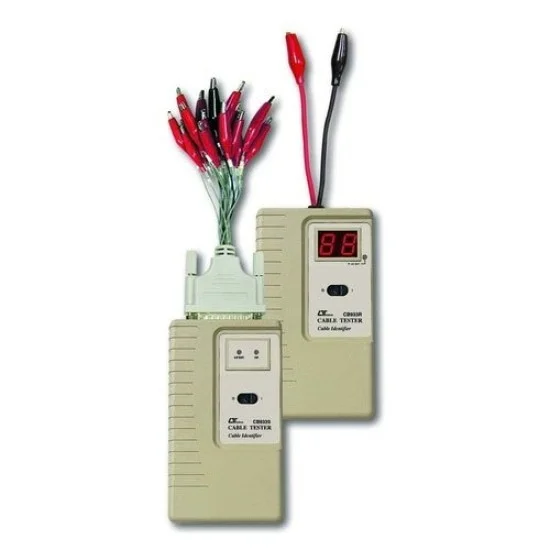

- Cable Tester Lutron CB-933 is a tool intended to identify the type of multiway cable and a variety of needs and interests of the cabling system. This tool is very useful to identify the type of cable, voltage and various other benefits.
Features:
- To identify & trace up to 16 cores in multi-way cable. It can also be connected to metal type of heating and the water supply installation system for this purpose
- LED display, easy operation with clear readout
- Wide application for communication cable maintenance, check up…etc.
- Transmitter : 17 alligators,
- Red x 16 and Black x 1.
- Receiver : 2 alligators,
- Red x 1 and Black x 1.
- To identify & trace up 16 cores in multi-way cable. It can also be connected to metal type of heating & the water supply installation system for this purpose.
- High impact ABS plastic housing case.
- LED display, easy operation with clear readout.
- Wide application for communication cable maintenance, check up…etc.
- 1.5V AA ( UM-3 ) battery x 4 PCs.
- Connect the ends of the transmitter cable (CH1 to CH16) to each wire of the tested track.
- Plug the ‘COM’ end of the transmitter (black) into a known vein.
- At the other end of the tested track, connect the terminal ‘COM’ (black) of the receiver to the known conductor.
- Connect the red end of the receiver to the veins of the tested cable in succession – if the conductor is not open, the number (1 to 16) appears on the display, depending on the terminal connected to it transmitter.
Documents:
TECHNICAL SPECIFICATION
| Receiver Power | DC 9V battery, Alkaline type, 006P, MN1604 ( PP3) or equivalent. |
| Receiver Power Current | 33 mA. |
| Transmitter Housing | High impact ABS plastic |
| Transmitter Power | DC 9V battery, Alkaline type, 006P, MN1604 ( PP3) or equivalent. |
General Specification
| Applications | To identify & trace up 16 cores in multi-way cable. It can also be connected to heating and the water supply installation system for this purpose |
| Cable Resistance | 25 K ohm, max. |
| Operating Temperature | Approx. 355 g/0.77 LB. |
| Receiver Alligators | 2 alligators, red x 1, black x 1. |
| Receiver Dimensions | 125 x 70 x 26.5 mm ( 4.9 x 2.8 x 1.0 inch). |
| Receiver Display | 14 mm seven segment LED, 2 digits, one red LED lamp. |
| Receiver Housing | High impact ABS plastic |
| Receiver Weight | Approx. 355 g/0.77 LB. |
| Transmitter Alligators | 17 alligators, green x 16, black x 1 |
| Transmitter Dimensions | 125 x 70 x 26.5 mm ( 4.9 x 2.8 x 1.0 inch). |
| Transmitter Display | Two red LED lamps |
| Transmitter Power Current | 2 mA |
