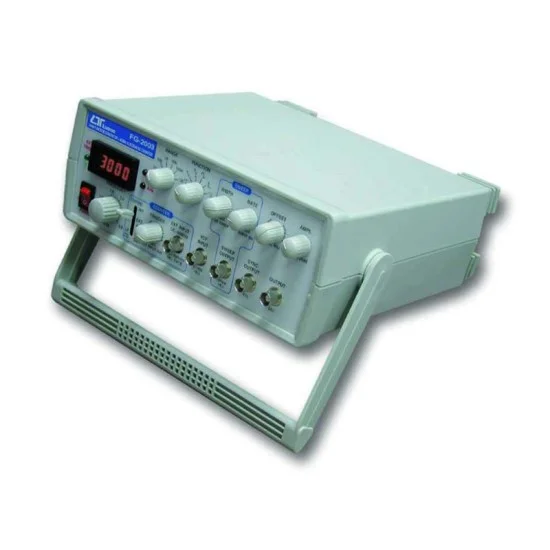

The latest Lutron FG-2003 Deluxe Function Generator price in Pakistan is Call for Price updated on September 9, 2026.
FEATURES:
- 3 MHz function generator with 60MHz auto range frequency counter.
- Function generator : 0.5Hz to 3MHz, 6 Range.
- Sins, Square, Triangle, Ramp, + Pulse, – Pulse.
- Frequency counter range : 0.2Hz to 60MHz.
- 5 digital 0.36″ Red LED display.
- Power Source AC 115V/230V,50/60Hz.
- Deluxe function generator combined with a 5 digit, high resolution 60 MHz counter.
- 4-in-1 instrument : Function Generator, Pulse Generator, Sweep Generator, Frequency Counter.
- 6 waves forms for function generator.
- Function generator range : 0.5 Hz to 3 MHz
- 4-in-1 instrument:
- Frequency Counter
- 6 waves forms: Sine, Square, Triangle, Ramp, Positive Pulse and Negative Pulse
- Function generator range : 0.5 Hz to 3 MHz, 6 ranges
- Combined with a 5 digit, high resolution 60 MHz counter
- Frequency counter range: 0.2Hz to 60MHz
Documents:
Display Specification
| Display | 5 digits 0.36′ red LED. |
Summary
| Resolution | Max : 0.001 Hz. |
| Weight | 2.5 Kg / 5.5 LB. |
HARDWARE FEATURES
| Power Consumption | 25 W. |
General Specification
| Display Unit | Hz / KHz Automatically controlled by CPU. |
| Frequency | 0.5 Hz ~ 3 MHz with 5 digit LED display, Max. resolution 0.001 Hz in 6 steps. |
| Power source | AC 115 V (±10%) 50/60 Hz, FUSE:600 mA AC 230 V (±10%) 50/60 Hz, FUSE:300 mA |
| Stability | 0.1 % ~ 15 minutes after power-on. 0.2 % ~ 24 hrs after power-on. |
| Waveform | Sine, Square, Triangle, Ramp, Positive Pulse and Negative Pulse; 6 waveforms total. |
| Dimension | 275 x 90 x 300 mm. |
