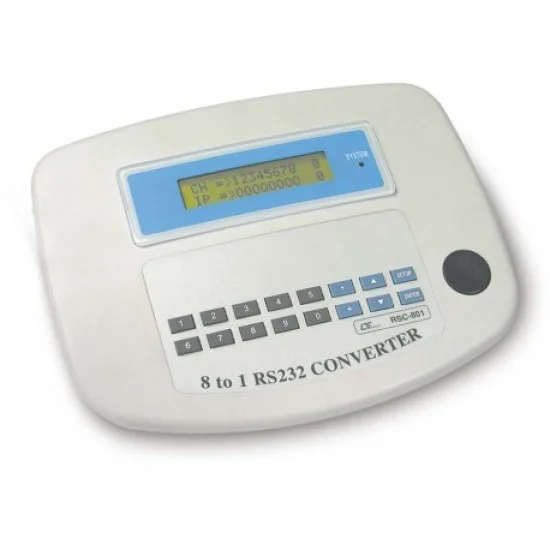

The latest Lutron RSC-801 8 to 1 RS232 Converter price in Pakistan is Rs. 192,000/- updated on July 23, 2026.
FEATURES:
- RSC-801 can convert the Lurton Rs. 232 instruments (Max. 8 Meters), then convert 8 Meters Rs. 232 Signal to one Rs. 232 output
- Useful tool, when apply the software SW-U801, SW-808, can expand the system to accept more meters input.
Documents:
Display Specification
| Display | Dot-matrix LCD with back light 16 characters x 2 line. |
Summary
| Weight | 592 g ( 1.3 LB ). |
| Size | 193 x 149 x 46 mm. ( 7.6 x 5.9 x 1.8 inch ). |
HARDWARE FEATURES
| Input/Output | RSC-801 can connect the LUTRON’s Rs. 232 instruments ( max. 8 meters ), then convert 8 meters’ Rs. 232 signal to one Rs. 232 output. |
| Power Consumption | Less than 160 mA DC. |
General Specification
| Operating Humidity | Less than 80% RH. |
| Operating Temperature | 0 to 50 ( 32 to 122 ) |
| Power Supply | DC 9V. |
