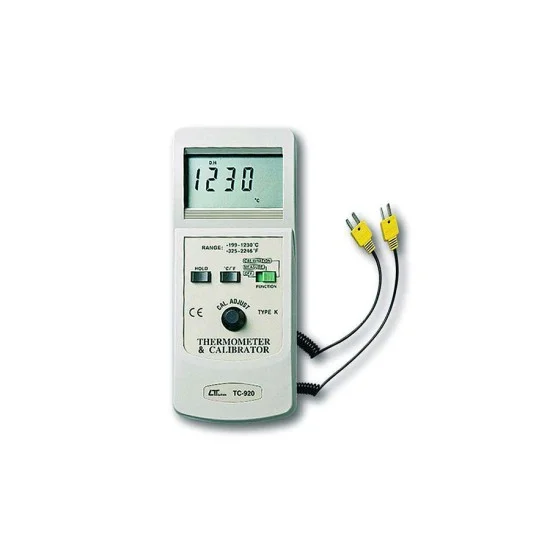

Lutron TC-920 Thermo Meter Calibrator For Type K
₨ 150,000
The latest Lutron TC-920 Thermo Meter Calibrator For Type K price in Pakistan is Rs. 150,000/- updated on October 22, 2026.
You can buy the Lutron TC-920 Thermo Meter Calibrator For Type K online at Roshanex in Pakistan.
FEATURES:
- 2 in 1, one meter included ‘ type k thermometer ‘ &’ type k thermocouple calibrator ‘.
- Precision calibrator for type k thermometer, calibrating
- process devices and measuring process signals.
- Wide range : -199 to 1230 ( -325 to 2246 ).
- Microprocessor circuit assures high accuracy and provides special functions and features.
- Build in temperature linearity compensation circuit, high precision.
- Select & data hold function for the temperature measurement.
- & select by the front button for the temperature calibrator
- Thermocouple sensor for Temp. measurement,response time.
- Rs. 232 PC serial computer interface. ( Please ref. Carrying case, CA-03, CA-04.
- Temp. measuring input to meet any standard type K page 9 ) Software, SW-U801-WIN.
- ( NiCr-NiAl ) probe. Rs. 232 cable, UPCB-01.
- Fitted with standard type K input measuring socket. USB cable, USB-01.
- Super large LCD display, easy reading.
- Operates from 006P DC 9V battery.
Display Specification
| Display | 14.8 mm (0.58′) digit size. Super large LCD display with annunciator. |
Summary
| Temperature Range | -199 ถึง 1230ºC |
| Resolution | 0.1°C ( <1000°C ). |
| Sampling Time | Approx. 1 second |
| Circuit | Custom one-chip of microprocessor LSI with thermocouple linearity correction circuit. |
| Weight | 280.0000 |
| Size | 185 x 78 x 38 mm. |
TECHNICAL SPECIFICATION
| Data Output | Rs. 232 PC serial computer interface |
| Number of Channels | 2 Channels |
| Type of Calibrator and Thermometer | -199°C to 1230°C, -325oF to 2246 oF. |
General Specification
| Polarity | ‘ – ‘ indicates negative polarity |
| Power Supply | 006P DC 9V |
| Dimension | 185 x 78 x 38 mm |
