The latest Mastech MS2140C Digital Clamp Multimeter price in Pakistan is Rs. 13,200/- updated on June 22, 2026.
OVERVIEW:

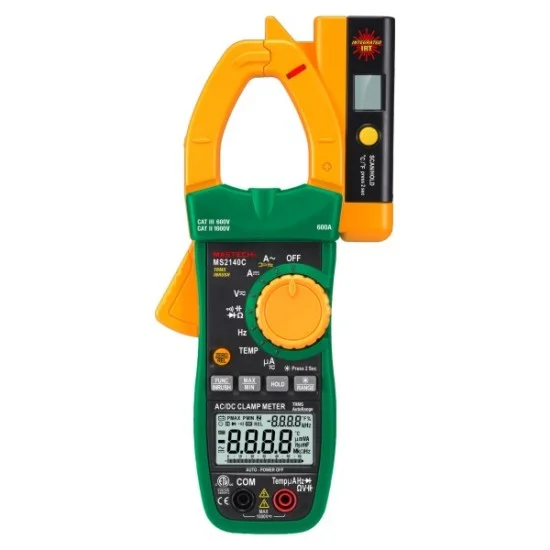

- Dual display digital clamp meter with removable infrared thermometer. It offers DC and True RMS AC voltage and current, resistance, capacitance, frequency and temperature measurements.
- Manual and Auto Mode
- Power Overload Protection
- Maximum Voltage Between Circuit and Ground: 1000V AC or 1000V DC
- Maximum Working Height: 2000m
- Display: LCD
- Maximum Display Number: 5999(Clamp), 9999(IRT)
- Auto Polarity Indication: “-” Indicates Negative
- Overload Indication: “0L” or “-0L”
- Sampling Frequency: 4 times/sec(Clamp), 2 times/sec(IRT)
Documents:
Summary
| DC Voltage | 600mV/6V/60V/600V/1000V +-(0.5%+3) |
| AC Voltage | 600mV/6V/60V/600V/1000V +-(0.8%+3) |
| Capacitance | 6nF +-(5%+5) 60nF/600nF/6uF/60uF/600uF/6mF/60mF +-(4%+5) |
| Resistance | 600Ω/6kΩ/60kΩ/600kΩ +-(0.8%+3) 6MΩ/60MΩ +-(1.2%+3) |
| AC Current | 600A/1000A +-(2.5%+10) |
| Frequency | A 60Hz/600Hz/6kHz +-(1.5%+5) V 60Hz/600Hz/6kHz/60kHz +-(1.5%+5) Hz 60Hz/600Hz/6kHz/60kHz/600kHz/6MHz /60MHz +-(0.3%+5) |
| Duty Cycle | 5%~95% +-3.0% |
| Inrush Current | 600A/1000A +-(10%+60) |
| Temperature(K-T) | -40℃~-10℃ +-(5.0%+1.5℃) -40℉~-14℉ +-(5.0%+3.3℉) -10℃~500℃ +-(1.0%+0.8℃) -14℉~932℉ +-(1.0%+0.8℉) |
| Temperature(IR-T) | -20℃~0℃ +-3.5℃ -4℉~32℉ +-6.5℉ 0℃~-350℃ +-(2.5%+3℃) -32℉~662℉ +-(2.5%+5℉) |
| DC µA Current | 200.0µA/2000µA +-(1.0%+5) |
| AC µA Current | 200.0µA/2000µA +-(1.0%+5) |
