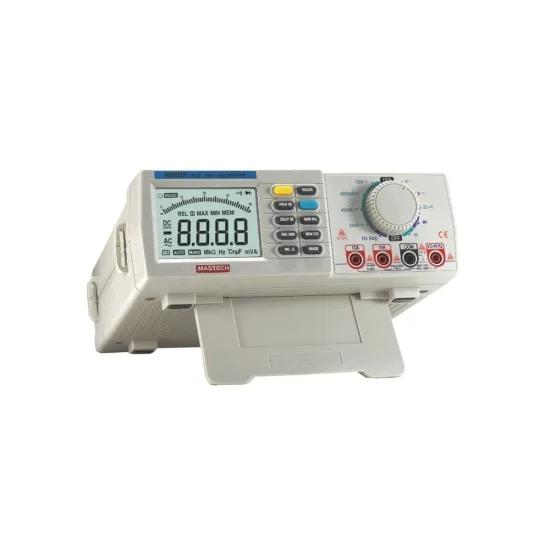

Mastech MS9803R Bench-type Top LCD Digital Multimeter
₨34,125.00
The latest Mastech MS9803R Bench-type Top LCD Digital Multimeter price in Pakistan is Rs. 34,125/- updated on September 1, 2026.
OVERVIEW:
- M9803R benchtop Digital Multimeter with the Rs. 232 interface and connected with the computer. Digital and analog display, 3999 Counts and 42 segments bar graph, Auto range and manual range data hold, max/min relative measurement storage data display/recall True RMS for AC voltage and current backlight ADP measurements
Feature:
- Display 4000 counts digital indication
- Frequency Range 9999counts Max
- 42 segment analog bar graph
- Auto & Manual Ranging
- True RMS for AC Voltage & AC Current
- Relative Measurement
- Diode 3.0V
- Continuity Buzzer <40Ω
- MAX/MIN
- Data Hold
- Display Backlight
- Display Storage
- USB Interface
Summary
| DC Voltage | 400mV +-(0.3%+5) 4V/40V/400V/1000V +-(0.3%+2) |
| AC Voltage | 4V/40V/400V/750V (50Hz~60Hz) +-(0.8%+5) 4V/40V/400V/750V (45Hz~1kHz) +-(1.2%+5) |
| Capacitance | 4nF +-(2%+40) 4nF/40nF/400nF/4µF +-(2%+5) 40µF (at ≤20µf) +-(2%+5) 40µF (at >20µf) +-(5%+5) |
| DC Current | 4mA/40mA/400mA +-(0.8%+5) 10A(20A for 30 seconds) +-(1.5%+10) |
| Resistance | 400Ω +-(0.5%+5) 4KΩ/40KΩ/400KΩ +-(0.5%+3) 4MΩ +-(1%+5) 40MΩ +-(1.5%+10) |
| AC Current | 4mA/40mA/400mA(45Hz~400Hz) +-(1.5%+5) 10A(20A for 30 seconds) (45Hz~400Hz) +-(2%+10) |
| Frequency | 100Hz/1kHz/10kHz/100kHz/600kHz +-(0.1%+4) |
| ADP Measurement | ≤400mV (10 Counts Per 1mV DC) +-(0.3%+5) |
