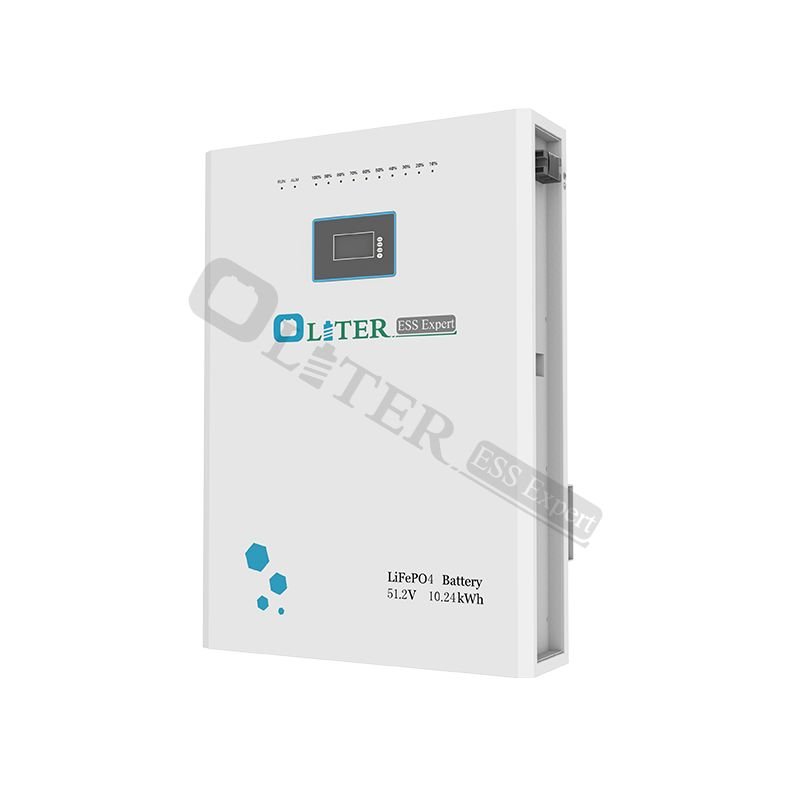

Oliter 51.2V 200Ah Wall-Mounted Lithium Battery (10.24kWh)

The latest Oliter 51.2V 200Ah Wall-Mounted Lithium Battery (10.24kWh) price in Pakistan is Rs. 450,000/- updated on October 21, 2026.

The Oliter 51.2V 200Ah Lithium Battery (model NES-W48200) is a high-performance LiFePO4 battery for home solar storage. It delivers 10.24kWh of energy in a floor or wall format.

Overview of the Oliter 51.2V 200Ah Lithium Battery

This capacity suits homes that need substantial backup or whole-home solar self-consumption, without stepping up to a large multi-cabinet system. It is the higher-capacity option in Oliter’s Nebula wall-mounted range. It also shares the same design language and communication protocols as the 100Ah model, so mixed-capacity installations stay straightforward.

Intelligent Battery Management System

An intelligent BMS sits at the core of the NES-W48200. It monitors system voltage, current and cell-level voltage in real time. It also tracks both cell and module temperatures.

As a result, it gives layered protection against over-charging, over-discharging, over-current, short circuits and abnormal temperatures. This helps optimise performance and extend the battery’s operating life. In addition, a smart SOC algorithm keeps the reported charge level accurate throughout the battery’s life, even as the cells age.

Long Service Life and Safety

• A+ grade lithium iron phosphate cells
• More than 6,000 cycles at 25°C
• Design life that exceeds 10 years
• Compact footprint, while still packing substantial energy capacity
• Optional detachable wheels for flexible placement and mobile energy storage use

Inverter Compatibility and Communication

The battery communicates over RS485, CAN and RS232. Moreover, a built-in Bluetooth module lets you monitor and configure the BMS through a mobile app, so you don’t need to reach the unit physically. The interface also supports several languages, including Chinese, English and Arabic. For this reason, installers and homeowners in many regions find it easy to use.

It has passed compatibility tests with a wide range of hybrid and off-grid inverter brands. Therefore, it fits both new installations and retrofit projects where reliable whole-home backup is the priority.

Scalability and Typical Applications

You can connect up to 15 units in parallel, so the system grows with your household’s energy needs. Typical uses include:

• Daytime solar self-consumption
• Evening peak-shifting
• Time-of-use tariff optimisation
• Reliable backup power during grid outages

Installation and Maintenance

Low self-consumption and standardised wiring keep installation straightforward. In addition, you can update the firmware remotely through the built-in Bluetooth module. As a result, the system stays current without a technician visit in most cases.

Certifications and Warranty

The Oliter 51.2V 200Ah lithium battery carries CE, IEC62619, UN38.3 and MSDS safety certifications. It also comes with a 5-year product warranty and a 10-year performance warranty.

Documents

Oliter NES-W48200 51.2V 200Ah Battery Datasheet.pdf

In addition, our team can help you choose the right model before you order.
