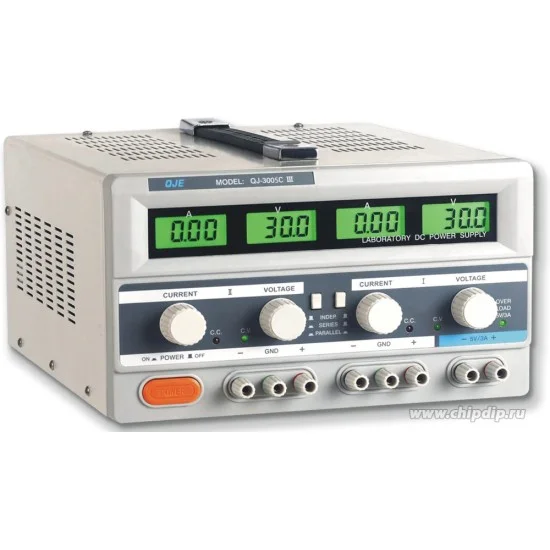

The latest QJ3005C III 30V 5A Adjustable DC Power Supply price in Pakistan is Rs. 30,000/- updated on September 10, 2026.
FEATURES:
- 2 independent adjustable channels + 5V / 3A channel
- Possibility of parallel or series connection of channels
- Output voltage of each adjustable channel: 0 ~ 30V, setting accuracy 0.1V
- Output current of each adjustable channel: 0 ~ 5A, setting accuracy 0.01A Low
- ripple: ≤ 0.5mV
- Small influence of load: ≤ 0.01% ± 3mV
- Small influence of mains voltage: ≤ 0.01% ± 2mV
- Smooth setting of output parameters by regulators COARSE / FINE
- Current and voltage stabilization modes
- Indication: 3-digit LCD displays simultaneously for current and voltage
- Short circuit protection
- Power supply : 110 / 220V ± 10%
Documents:
QJ3005C III 30V 5A Adjustable DC Power Supply Data Sheet.pdf
Summary
| Output Current | 0…5A |
TECHNICAL SPECIFICATION
| Number of Channels | 2 |
General Specification
| Current Indication Accuracy | ±2%+2d |
| Indication | LCD |
| Line Regulation | CV≤1×10-4 +3mV CC≤2×10-3 +6mA |
| Load Regulation | CV≤2×10-4 +3mV CC≤2×10-4 +6mA |
| Protection | current Limiting |
| Series | qj…c |
| Source type | linear |
| Voltage Indication Accuracy | ±1%+1d |
| Weight | 8.5 kg |
| Dimensions | 365х265х165mm |
| Output Voltage | 0…30V |
