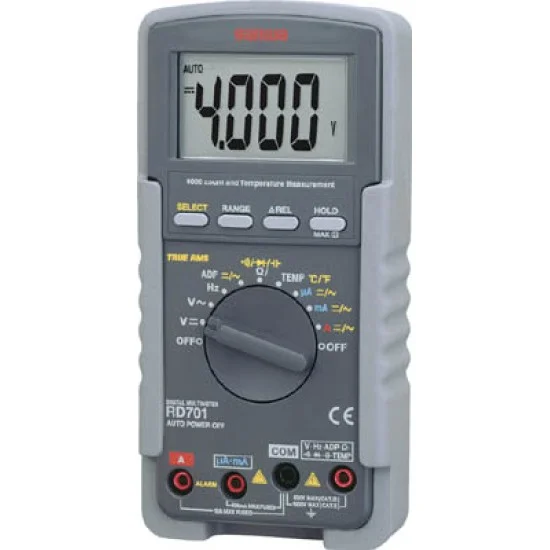

Sanwa RD701 AC True RMS Digital Multimeters
₨35,000.00
The latest Sanwa RD701 AC True RMS Digital Multimeters price in Pakistan is Rs. 35,000/- updated on June 24, 2026.
OVERVIEW:
- 3-3 / 4 digits 4000 count
- 0.3% best accuracy
- AC True RMS ※RD701 only
- Capacitance measurement
- Not suitable for measurement of condensers with large leak current.
- K type temperature
- Optional accessory K-AD is necessary.
- K type temp. sensor K-250PC is included as a standard accessory
- Frequency measurement
- Input voltage: 20VACrms and under
- Input signal: sign wave or square wave with 40%-70% duty
- Input sensitivity: 10Hz〜20kHz/0.9Vrms and above : 20kHz〜500kHz/2.6Vp or 1.9Vrms and above : 500kHz〜1MHz/4.2Vp or 3Vrms and above
- ADP function (for current sensor)
- Max recording measurement
- Data hold / Range hold
- Auto power off (30min.) (cancelable)
- Protective holster with wall hanger and lead holder
- Tilt stand
- Display: numeral display 4000 (Hz: 9999, capacitance: 5000)
- Sampling rate : 3 times / sec. (Hz: 2 times / sec.)
- AC frequency bandwidth: 50〜500Hz
- Relative value
- Alarm for improper test lead insertion to current terminal
Documents:
Display Specification
| Display | numeral display 4000 (Hz : 9999, capacitance :5000) |
Summary
| Accuracy | 0.3% |
| Sampling Time | 3 times / sec. (Hz : 2 times / sec.) |
HARDWARE FEATURES
| Model No | SANWA RD701 |
Type
| Type Of Other Product | Digital Multimeters |
