Industrial Automation & Circuit Protection, Industrial Relays, SCHNEIDER ELECTRIC

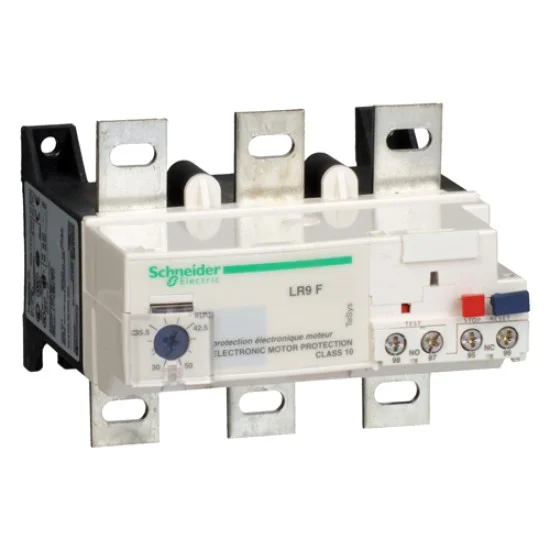

Schneider LR9F5357 Electronic Overload Relays
₨ 29,900
The latest Schneider LR9F5357 Electronic Overload Relays price in Pakistan is Rs. 29,900/- updated on October 25, 2026.
You can buy the Schneider LR9F5357 Electronic Overload Relays online at Roshanex in Pakistan.
OVERVIEW:
Connection Terminals:
- Control circuit : screw clamp terminals 1 cable 0.75…2.5 mm² – cable stiffness: solid
- Control circuit : screw clamp terminals 2 cable 1 mm² – cable stiffness: solid
- Control circuit : screw clamp terminals 1 cable 0.75…2.5 mm² – cable stiffness: flexible – with cable end cable end
- Control circuit : screw clamp terminals 1 cable 0.75…4 mm² – cable stiffness: flexible – without cable end cable end
- Control circuit : screw clamp terminals 2 cable 1…1.5 mm² – cable stiffness: flexible – with cable end cable end
- Control circuit : screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – without cable end cable end
- Power circuit : lugs-ring terminals M6
Documents:
Schneider LR9F5357 Electronic Overload Relays Data Sheet.pdf
Summary
| Range | TeSys |
| Weight | 0.885 kg |
HARDWARE FEATURES
| IP degree of protection | IP20 conforming to VDE 0106 IP20 conforming to IEC 60529 |
| Mounting Support | Plate Direct on contactor |
| Network Type | AC |
| Product Compatibility | LC1F115…LC1F185 |
Type
| product or component type | Electronic thermal overload relay |
General Specification
| Network Frequency | 50/60 Hz |
| Tightening Torque | Control circuit : 1.2 N.m – on screw clamp terminals Power circuit : 10 N.m – on screw clamp terminals |
| [Ue] Rated Operational Voltage | 1000 V AC 50/60 Hz for power circuit conforming to VDE 0110 group C |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-1 |
| [Ui] rated insulation voltage | 1000 V AC power circuit conforming to IEC 60947-4 |
| Adjustable detection range | 30…50 A |
