Industrial Automation & Circuit Protection, SCHNEIDER ELECTRIC

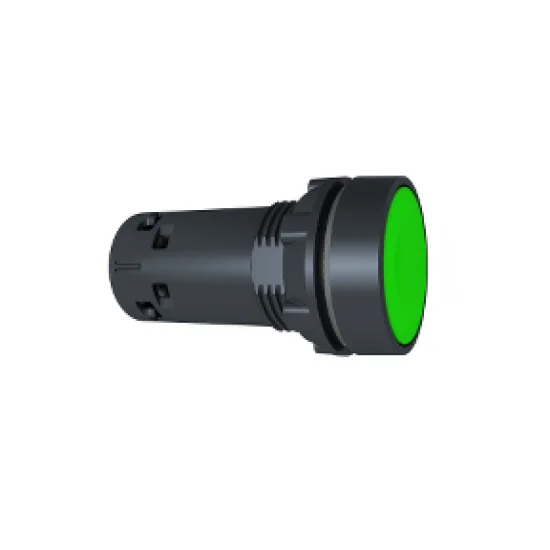

SCHNEIDER PLASTIC CIRCULAR BEZEL PUSH BUTTON-XB7NA31
₨ 1,760
The latest SCHNEIDER PLASTIC CIRCULAR BEZEL PUSH BUTTON-XB7NA31 price in Pakistan is Rs. 1,760/- updated on October 23, 2026.
You can buy the Schneider Plastic Circular Bezel Push BUTTON-XB7NA31 online at Roshanex in Pakistan.
Documents:
Summary
| Ambient Air Temperature for Operation | -25…70°C |
| Ambient Air Temperature for Storage | -40…70°C |
| Height | 29 mm |
| [Ie] rated operational current | 0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1 0.3 A at 240 V, AC-14, D300 conforming to EN/IEC 60947-5-1 0.6 A at 120 V, AC-14, D300 conforming to EN/IEC 60947-5-1 |
| Weight | 0.021 kg |
| Depth | 51.5 mm |
HARDWARE FEATURES
| IP degree of protection | IP20 (rear face) conforming to IEC 60529 IP65 (front face) conforming to IEC 60529 |
| Mounting | Fixing hole: Ø 22.5 mm (22.3 +0.4/0) conforming to EN/IEC 60947-1 |
Type
| product or component type | Push-button |
General Specification
| Connections – terminals | Screw clamp terminals : <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals : 1 x 0.34…2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| Contact Arrangements | 1 NO |
| Diameter | 22 mm |
| Electrical Durability | 1000000 cycles, DC-13, 0.3 A at 24 V, operating rate: 216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.03 A at 230 V, operating rate: 216000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 0.09 A at 240 V, operating rate: 108000 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C |
| Mechanical Durability | 1000000 cycles |
| Tightening Torque | 0.8…1.2 N.m conforming to EN 60947-1 |
| Type | Spring return |
| Width | 29 mm |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage | 250 V (degree of pollution: 3) conforming to EN/IEC 60947-1 |
