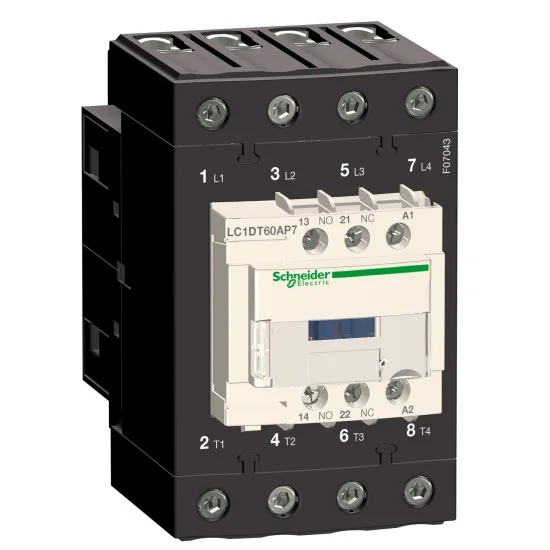

Schneider TeSys D Contactor LC1DT60A
₨ 37,400
The latest Schneider TeSys D Contactor LC1DT60A price in Pakistan is Rs. 37,400/- updated on October 23, 2026.
You can buy the Schneider TeSys D Contactor LC1DT60A online at Roshanex in Pakistan.
OVERVIEW:
Connection Terminals:
- Control circuit : screw clamp terminals 2 cable(s) 1…2.5 mm² – cable stiffness: flexible – with cable end
- Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…4 mm² – cable stiffness: flexible – without cable end
- Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: flexible – with cable end
- Control circuit : screw clamp terminals 1 cable(s) 1…4 mm² – cable stiffness: solid – without cable end
- Control circuit : screw clamp terminals 2 cable(s) 1…4 mm² – cable stiffness: solid – without cable end
- Power circuit : connector 1 cable(s) 2.5…10 mm² – cable stiffness: flexible – without cable end
- Power circuit : connector 2 cable(s) 2.5…10 mm² – cable stiffness: flexible – without cable end
- Power circuit : connector 1 cable(s) 2.5…10 mm² – cable stiffness: flexible – with cable end
- Power circuit : connector 2 cable(s) 2.5…10 mm² – cable stiffness: flexible – with cable end
- Power circuit : connector 1 cable(s) 2.5…16 mm² – cable stiffness: solid – without cable end
- Power circuit : connector 2 cable(s) 2.5…16 mm² – cable stiffness: solid – without cable end
Documents:
Summary
| [Ie] rated operational current | 60 A (<= 60°C) at <= 440 V AC AC-1 for power circuit |
HARDWARE FEATURES
| Auxiliary Contact Composition | 1 NO + 1 NC |
Type
| product or component type | Contactor |
General Specification
| Connections – terminals | Power circuit : screw clamp terminals 2 cable(s) 1…4 mm² – cable stiffness: solid – without cable end |
| Electrical Durability | 1.4 Mcycles 40 A AC-1 at Ue <= 440 V |
| Poles Description | 4P |
| Tightening Torque | Power circuit : 1.7 N.m – on screw clamp terminals – with screwdriver flat Ø 6 mm |
| [Uc] control circuit voltage | 48 V DC 125 V DC 220 V DC |
| [Ue] Rated Operational Voltage | <= 300 V DC for power circuit <= 690 V AC 25…400 Hz for power circuit |
