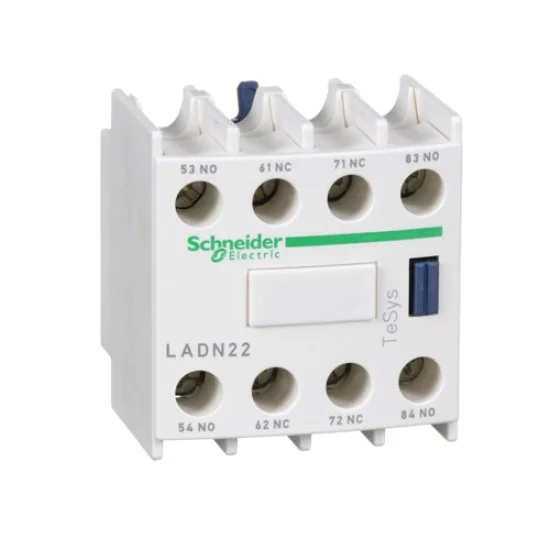

Schneider TeSys D – Screw Clamps Terminals – ACB – LADN22
₨ 2,480
The latest Schneider TeSys D - Screw Clamps Terminals - ACB - LADN22 price in Pakistan is Rs. 2,480/- updated on October 23, 2026.
You can buy the Schneider TeSys D – Screw Clamps Terminals – ACB – LADN22 online at Roshanex in Pakistan.
OVERVIEW:
Permissible Short-time Rating:
- 100 A at 60°C 1 s
- 120 A at 60°C 500 ms
- 140 A at 60°C 100 ms
Connection Terminals:
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – with cable end
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – without cable end
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – with cable end
- Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – without cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – with cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: flexible – without cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – with cable end
- Screw clamp terminals 2 cable 1…2.5 mm² – cable stiffness: solid – without cable end
Documents:
Schneider TeSys D – Screw Clamps Terminals – ACB – LADN22 Data Sheet.pdf
Summary
| Poles configuration | 2 NO + 2 NC |
| Range | TeSys |
| Weight | 0.05 kg |
HARDWARE FEATURES
| Auxiliary Contact Composition | Instantaneous |
| IP degree of protection | IP2x conforming to VDE 0106 |
Type
| product or component type | Auxiliary contact block |
General Specification
| Connections – terminals | Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – with cable end Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: flexible – without cable end Screw clamp terminals 1 cable 1…2.5 mm² – cable stiffness: solid – with cable end |
| Mechanical Durability | 30 Mcycles |
| [Ue] Rated Operational Voltage | 690 V AC 25…400 Hz |
| [Ui] rated insulation voltage | 690 V – conforming to IEC 60947-5-1 600 V – certifications CSA 600 V – certifications UL |
