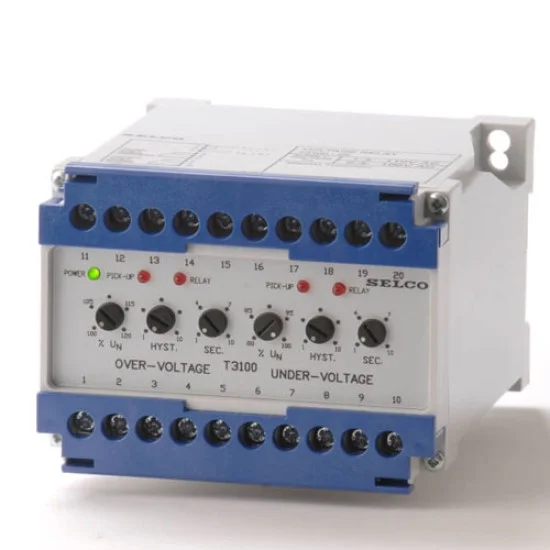

The latest Selco T3100-03 Voltage Relay price in Pakistan is Call for Price updated on September 10, 2026.
OVERVIEW:
- The T3100 is intended for effective voltage surveillance on generators, busbar or other distribution systems. The relay contains the functions “under voltage” and “over voltage” time delayed, and 2 individual output relays, one relay for each function.
Features:
- Price competitive due to combined functions
- Visual indication of power, pick-up and relay tripping on both relays
- High prection digital countdown timer for delayed output
- Accepts high supply voltage variations: 70-110%
Documents:
POWER
| Consumption | 5VA at UN |
Summary
| Voltage range | 70 – 120% |
| Weight | 0.5kg |
HARDWARE FEATURES
| Relay | Over voltage relay : Normally de-energized, Under voltage relay : Normally energized. |
| Supply Voltage | 415/480V. |
TECHNICAL SPECIFICATION
| Maximum Voltage | 660V |
| Operating Temperature | -20°C to +70°C |
General Specification
| Contacts | Rating : AC: 250V, 2A, 250VA, DC: 60V, 2A, 100W |
| Model | T3100-03. |
| Type | Voltage Relay. |
| Dimensions | 70 x 100 x 115mm (H x W x D) |
WIRELESS FEATURES
| Frequency Range | 40 – 400Hz |
