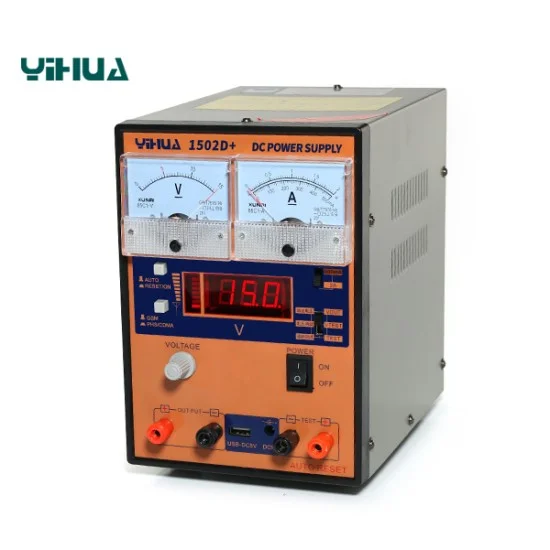

YIHUA YH 1502D+ DC Variable Power Supply


6,250.00

The latest YIHUA YH 1502D+ DC Variable Power Supply price in Pakistan is Rs. 6,250/- updated on July 2, 2026.

FEATURES:

  • Output voltage: 0-15V adjustable, Current: 0-2A/0-500mA adjustable.
  • YIHUA-1502D+ DC power supply is high in stability, reliable in quality, and durable in use.
  • It is a full-featured device with short circuit protection function and automatic recovery function.
  • YIHUA-1502D+ basic have 5V/15 conversion function and has USB interface .
  • YIHUA-1502D+ upgrade version with the voltage test function, it can be used to test voltage range of 0-49.9V.
  • YIHUA-1502D+ upgrade version has Mobile signals such as GSM, CDMA, and PHS, etc., can be tested with this device.
  • Additionally, our YIHUA-1502D+upgrade version DC power supply has the on-off test function as well as 5V or 9V DC output function.

Application:

  • This product is widely used to provide 0-15V DC power output and test 0-49.9V DC voltage in the mobile phone repairs or other related industries. Added with the 0-500mA grade, the DC power supply allows for more accurate test.

Computers Specs

Rated Voltage AC220V 50Hz

Summary

Output Current 0-2A/0-500mA

TECHNICAL SPECIFICATION

Measurement Accuracy 0.1V
Power 35W

General Specification

Emission Interference Anti-interference
Loading Effect ≤0.13%
Power Stability ≤0.5%
Ripple And Noise ≤4mV
Source Effect 1.5mV
Weight 1.9KG
Working Condition 0 ~ 40℃ relative humidity < 80%
Dimensions 205*140*200cm
Output Voltage 0 ~ 15V
