The latest Korean Inverter PowerGen 2kW 12V Solar Inverter price in Pakistan is Rs. 40,000/- updated on October 29, 2026.

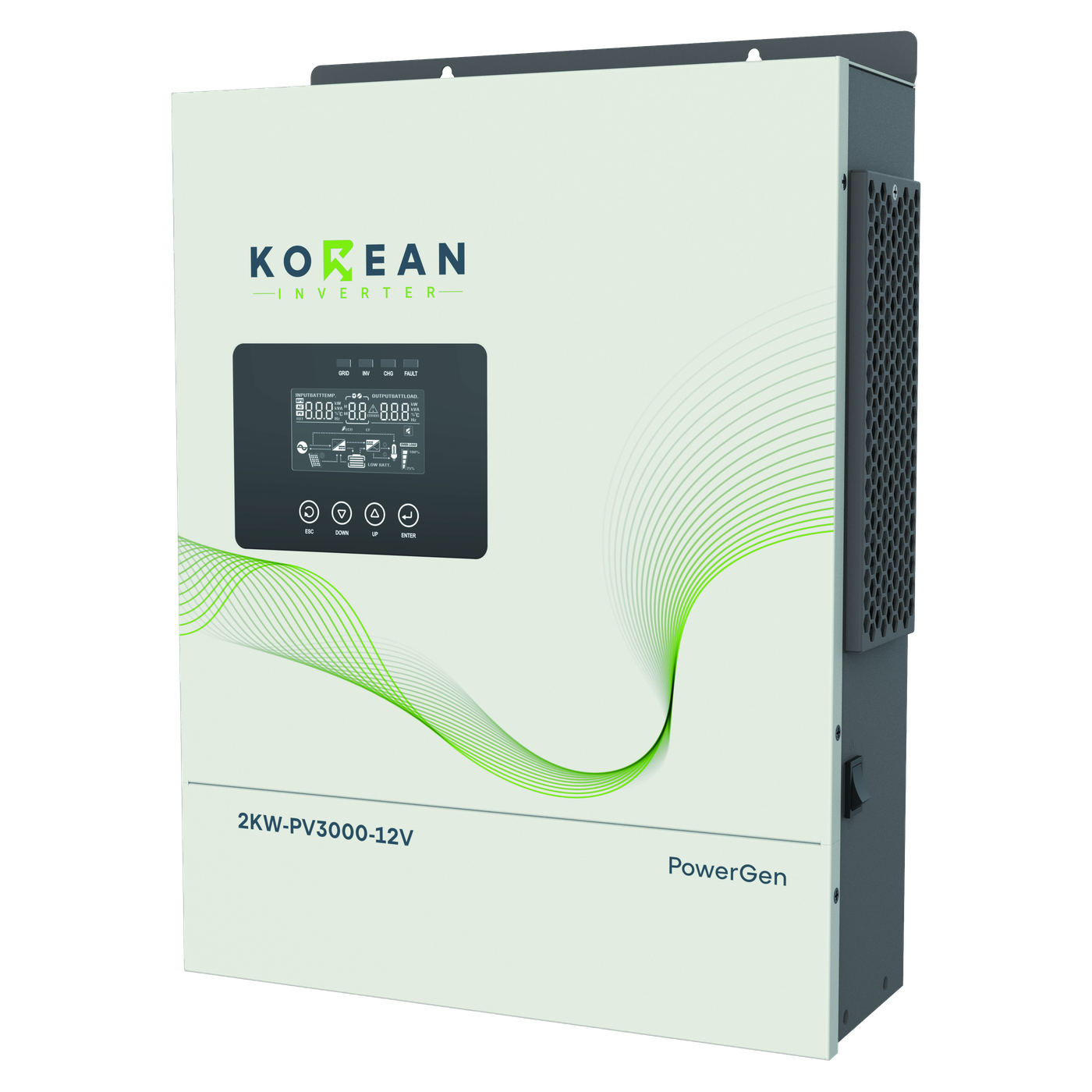

The Korean inverter 2kW (PowerGen 2kW, model 2KW-PV3000-12V) is a compact solar inverter for small homes. It runs on a single 12V battery and takes up to 3000W of solar input. In addition, it can charge the battery from grid power when sunlight is low. At just 5 kg, it is easy to wall-mount almost anywhere.
Korean Inverter 2kW Solar Input
A single MPPT tracker accepts up to 3000W of PV input. The MPPT range runs from 30V to 400V, with a 450V max. PV input voltage. Because MPPT efficiency is above 99%, the inverter gets the most from your panels. Similarly, peak PV-to-inverter efficiency stays above 95%.
Battery and Backup Power
The Korean inverter 2kW works with 12V lead-acid or lithium-ion batteries. For lithium batteries, charging adapts automatically to the BMS over RS485. It charges at up to 100A and discharges at up to 150A. Meanwhile, it delivers 2kW from solar plus battery, or 1.6kW from the battery alone. It also handles a 4000W peak when appliances start up.
Output, Cooling and Warranty
Two AC output ports supply 230V at 50/60Hz. Moreover, current harmonic distortion stays below 3% of nominal power. On the grid side, it accepts a wide 90–300V input range. In addition, a 17A bypass lets grid power run your loads directly. Intelligent air cooling also keeps it running from -10°C to 60°C. The unit meets IEC/EN 62109-1 and 62109-2 safety standards. Finally, it comes with a 5-year warranty (2 years free, 3 years service).
Need More Power?
For larger homes, the Korean inverter 5kW (PowerGen Pro) supports 9000W of solar on a 24V battery bank. You can also see every model on our Korean Inverter page. Alternatively, compare other brands in our off-grid solar inverter range. To complete your system, browse our lithium-ion batteries and deep cycle batteries.
Korean Inverter 2kW Datasheet
| Battery Input Data | |
| Model | PowerGen 2kW (2KW-PV3000-12V) |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage | 12 V |
| Max. Charging Current | 100 A |
| Max. Discharging Current | 150 A |
| Charging Strategy for Li-ion Battery | Self adaption to BMS |
| Number of Battery Inputs | 1 |
| PV String Input Data | |
| Max. PV Access Power | 3750 W |
| Max. PV Input Power | 3000 W |
| Max. PV Input Voltage | 450 V |
| Start-up Voltage | 40 V |
| MPPT Voltage Range | 30–400 V |
| Rated PV Input Voltage | 170 V |
| Max. Operating PV Input Current | 18 A |
| No. of MPPT Trackers / Strings per MPPT Tracker | 1 / 1 |
| AC Output Data | |
| Rated AC Output Power | 2 kW @ PV + Bat / 1.6 kW @ Bat |
| Max. AC Output Power | 2000 VA / W |
| Peak Power | 4000 W |
| Rated Output Voltage | 230 V |
| Number of AC Output Ports | 2 |
| Output Type | L + N + PE |
| Rated Output Frequency | 50 / 60 Hz |
| Total Current Harmonic Distortion (THDi) | < 3% (of nominal power) |
| AC Input Data | |
| Max. Input Power to Battery | 1600 W |
| Rated Input Voltage | 230 V |
| Voltage Range | 90–300 V |
| Rated Input Frequency | 50 / 60 Hz (auto-detect) |
| Bypass Current | 17 A |
| Efficiency | |
| Peak Efficiency (Battery to INV) | ≥ 91% |
| Peak Efficiency (PV to INV) | > 95% |
| MPPT Efficiency | > 99% |
| Interface | |
| Communication Interface | RS485 (BMS) |
| General Data | |
| Operating Temperature Range | -10 ~ 60°C |
| Permissible Ambient Humidity | 5–95% |
| Permissible Altitude | 2000 m |
| Noise | 55 dB |
| Ingress Protection (IP) Rating | IP21 |
| Inverter Topology | Non-isolated |
| Cabinet Size (D × W × H) | 102 × 281.5 × 339 mm |
| Weight | 5 kg |
| Type of Cooling | Intelligent Air Cooling |
| Safety EMC / Standard | IEC/EN 62109-1, IEC/EN 62109-2 |
| Warranty | 5 years (2 years free, 3 years service) |
| Notes & Conditions (from official datasheet) | |
| Source: Korean Inverter PowerGen 2kW datasheet, korean-solar.com. | |
