The latest Korean Inverter PowerGen Pro 5kW 24V Solar Inverter price in Pakistan is Rs. 85,000/- updated on October 29, 2026.

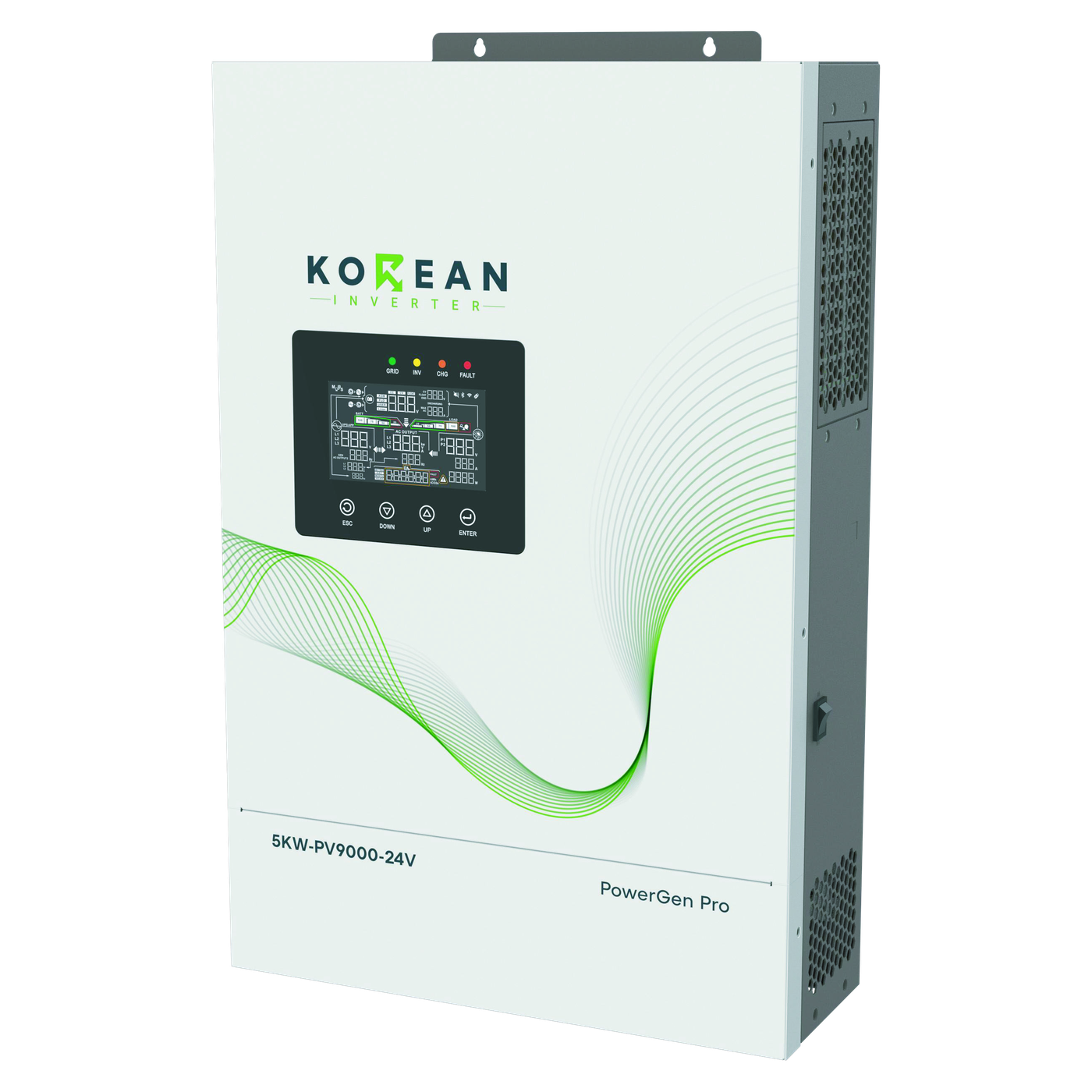

The Korean inverter 5kW (PowerGen Pro 5kW, model 5KW-PV9000-24V) is a pure sine wave solar inverter for homes. It runs on a 24V battery bank and accepts up to 9000W of solar input. In addition, it charges the battery from solar and grid power at up to 160A. Its rated capacity is 6250VA / 5000W.
Korean Inverter 5kW Solar Input
The PowerGen Pro takes up to 9000W of PV power, well above its 5kW output rating. Its MPPT operating range runs from 40V to 450VDC, with a 500VDC max. open-circuit voltage. Max. solar input current is 28A, so it suits today’s high-current panels. Peak PV-to-inverter efficiency is also 96%.
Battery and Charging
It works with lithium and lead-acid batteries at a nominal 24V (2 × 12V). Combined solar and AC charging runs at up to 160A, adjustable from 2A. Charging voltages are also settable, so you can match them to your battery. For example, CV mode is settable from 28V to 29V.
Backup Output and Protection
The Korean inverter 5kW supplies 5kW from solar plus battery, or 4kW from the battery alone. It also handles a 15000VA surge for appliances with high startup current. If the grid fails, it switches over in 10 ms in both UPS and appliance modes. Meanwhile, overload protection steps in once the load passes 102%. It also has a built-in transfer switch and power booster.
Build and Warranty
The unit weighs 10 kg and measures 394 × 326 × 110 mm (D × W × H). In addition, it connects over RS485, RS232, USB and dry contact. However, its IP21 rating means it needs a sheltered indoor spot. It operates from -10°C to 50°C and carries a 5-year warranty (2 years free, 3 years service).
Compare and Complete Your System
For smaller loads, the Korean inverter 2kW (PowerGen) runs on a single 12V battery. You can also see every model on our Korean Inverter page. Alternatively, compare other brands in our off-grid solar inverter range. To complete your system, browse our lithium-ion batteries and deep cycle batteries.
Korean Inverter 5kW Datasheet
| General | |
| Model | PowerGen Pro 5kW (5KW-PV9000-24V) |
|---|---|
| Rated Capacity | 6250 VA / 5000 W |
| PV Input | |
| PV Maximum Input Power | 9000 W |
| Max. PV Open Circuit Voltage | 500 VDC |
| MPPT Range Operating Voltage | 40 ~ 450 VDC |
| Max. Solar Input Current | 28 A |
| Battery Specifications | |
| Battery Type | Lithium and Lead-acid |
| Nominal Battery Voltage | 24 V (2 × 12 V) |
| AC Input | |
| Nominal Voltage | 208 / 220 / 230 / 240 V; L + N + PE |
| Voltage Range | 90 ~ 280 ±3 V (normal mode); 170 ~ 280 ±3 V (UPS mode) |
| Frequency | 50 / 60 Hz (Auto Adaptive) |
| AC Output | |
| Rated Capacity | 5 kW @ PV + Bat; 4 kW @ Bat |
| Surge Power | 15000 VA |
| Waveform | Pure Sine Wave |
| Nominal Voltage | 208 / 220 / 230 / 240 VAC |
| Feed-in Grid Voltage Range | 195 ~ 253 VAC |
| Nominal Frequency | 50 / 60 Hz |
| Feed-in Grid Frequency Range | 49 ~ 51 Hz ±0.1% / 59 ~ 61 Hz ±0.1% |
| Transfer Time | 10 ms UPS mode 10 ms Appliance mode |
| Peak Efficiency (PV to INV) | 96.00% |
| Peak Efficiency (Battery to INV) | 92.50% |
| Overload Protection | 1 min @ 102% < Load ≤ 110% 10 s @ 110% < Load ≤ 130% 3 s @ 130% < Load ≤ 150% 200 ms @ Load > 150% |
| Admissible Power Factor | -0.8 ~ +0.8 |
| Charger Specifications (Solar Charger & AC Charger) | |
| Charging Voltage | FV mode: 27 V (settable: 26.6 ~ 27.8 V) CV mode: 28.2 V (settable: 28 ~ 29 V) |
| Battery Over Voltage | 30.5 V |
| Charging Current | 2 ~ 160 A |
| Max. AC Charge Current | 160 A |
| Max. PV Charge Current | 160 A |
| Max. Charge Current (PV + AC) | 160 A |
| Physical | |
| Built-in Transfer | Yes |
| Built-in Power Booster | Yes |
| Dimensions (D × W × H) | 394 × 326 × 110 mm |
| Net Weight | 10 kg |
| Communication Interface | RS485 / RS232 / USB / Dry Contact |
| Environment | |
| Ingress Protection | IP21 |
| Operating Temperature Range | -10°C ~ 50°C |
| Storage Temperature | -15°C ~ 60°C |
| Humidity | 5% ~ 95% (Non-condensing) |
| Warranty | 5 years (2 years free, 3 years service) |
| Notes & Conditions (from official datasheet) | |
| Source: Korean Inverter PowerGen Pro 5kW datasheet, korean-solar.com. | |
